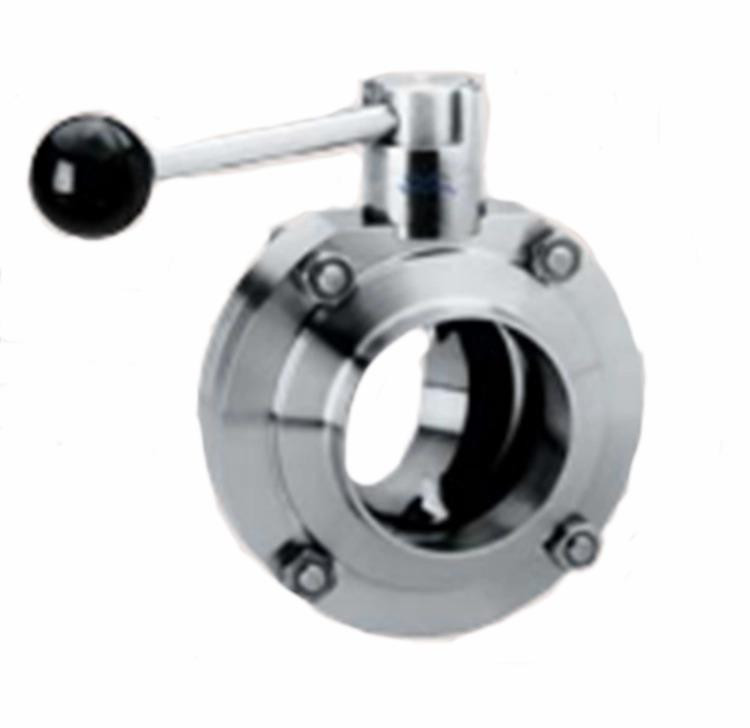

Alfa Laval 9612628156 LKB-2 DIN-W/W-NW40-304L-EPDM W/HANDLE-2 POS.

Alfa Laval

Product Code: 9612628156
Brand: Alfa Laval



GET OFFER: info@imtek.com.tr

Description for Alfa Laval 9612628156 LKB-2 DIN-W/W-NW40-304L-EPDM W/HANDLE-2 POS.

Special flange version of the LKB butterfly valve that makes it easy to remove the valve body without needing to dismantle piping set-ups. This in turn makes it easy to undertake repair, service and replacement with a bare minimum of disruption. he automated LKB butterfly valve is controlled from remote location by means of compressed air using a pneumatic actuator.  The actuator controls the axial movement of a piston, which rotates the shaft 90°. The torque exerted by the actuator increases when the valve disc contacts the valve sealing ring, to ensure effective closing. The actuator is available in three standard versions: normally closed (NC), normally open (NO) and air/air activated (A/A). Manual handle is available.
