Aoip CALISTO Temperature Thermometer

Aoip

Product Code: CALISTO
Brand: Aoip



GET OFFER: info@imtek.com.tr

Description for Aoip CALISTO Temperature Thermometer

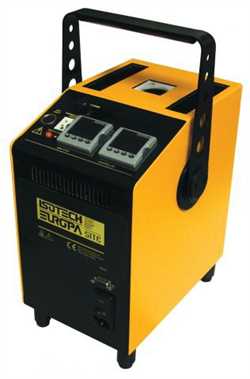

Calisto is a calibration dry block and liquid bath for temperature thermometers from 30°C (in ambient of 20°C) to 250°C. Combined with accessories, it can also be converted into a blackbody source for infrared thermometers, a surface sensor calibrator and ITS-90 Fixed Point cell with calibration uncertainties up to 0.0005ºC. Calisto is available in two models, the BASIC (B) and the SITE (S).The B model includes a sophisticated temperature controller with a dual display for set temperature and dry block temperature.The S model additionally includes an in-built temperature digital indicator to which an external temperature sensor can be connected. It ensures traceability, best practise and adherence to quality standards and calibration to the smallest of uncertaintiesFor dry block use, the unit under test may be compared to the controller value. The use of an external probe connected to the indicator of the Site model which compensates for the temperature gradient and loading errors, is recommended. This gives greater accuracy and traceability meeting the requirements of ISO 9000 and other quality standards.For liquid bath, surface sensor and blackbody use, an external standard probe should always be used, either with the S models indicator or a separate stand-alone indicator.For laboratory use, Calisto can be used with a laboratory performance temperature indicator. Key features:Middle temperature operation: From 30ºC in ambient temperature of 20ºC up to 250°CUse for Fixed Point of GalliumCalibration as a liquid bath or a dry block: thermocouples, platinum resistance thermometers, thermistors, liquid in glass, thermostats, semiconductor types Temperature range 30°C (Tamb 20°C) to +250°C Stability as: Dry block Blackbody Surface sensor Stirred liquid bath ITS-90 Fixed Point cells ±0.03°C ±0.3°C ±0.5°C ±0.025°C ±0.0005°C Accuracy as dry block 0.25°C Uniformity: Between holes as dry block Radial as liquid bath Lower 40 mm (Axial) as dry block Lower 40 mm (Axial) as liquid bath   < 0.02°C at 250°C < 0.011°C at 250°C < 0.25°C < 0.02°C at 250°C Heating time 25°C to 250°C: 15 min Cooling time 250°C to 30°C: 15 min Insert diameter 35 mm Immersion depth 160 mm Insert types 3 different types General specifications Size 302 x 176 x 262 mm Weight 8 kg Power supply 115 VAC or 230 VAC (50 / 60 Hz) 300 Watts Communication ports RS 232
