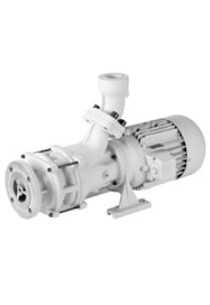

Brinkmann SBC820 Horizontal End-Suction Pump

Brinkmann

Product Code: SBC820
Brand: Brinkmann



GET OFFER: info@imtek.com.tr

Description for Brinkmann SBC820 Horizontal End-Suction Pump

SBC820, 1120 – Axial/Semi-open impellersHorizontal End-Suction Pumps are centrifugal inline pumps with a compact design where the impeller is mounted onto the extended motor shaft. These pumps are not self-priming and must be gravity fed. All pumps are equipped with double mechanical seal. This pump series is designed for horizontal installations next to a tank and are capable of cutting aluminium chips and similar materials and pumping of these materials along with the coolant fluid. An agitator located at the pump suction helps to break up and separate any large bundles of chips or birds nests which reach the pump suction.The specially made cutting unit (> 60 HRC) is cuting chips and the above located semi-open impeller allows with its large clearances to pump the particles along with the coolant fluid from the machine back to the filter. The SBC pumps are capable of handling chip to coolant ratios of up to 1.5% by weight.The SBC pumps are equipped with the user-friendly 45 degree flange connection which allows for either vertical or horizontal pipe connection and the connection of a pressure gauge with G ¼.For more information see mechanical features within the technical information section (SFC).Applications Types of fluid water coolants cooling/cutting oilsMax. chip to coolant ratio by weight:1.5 %Chip material:AluminiumChip geometry: Chip bundles to max. Ø 100 mmKinematic viscosity45 mm²/s (45 cSt)Pumping temperature 0 – 80°C ConstructionPump bodyCast ironCoverCast ironImpeller axialCast steelImpeller radialCast steelCutting unitHardened (>60 HRC)AgitatorHighly ductileShaftSteelMechanical sealSiCNoise levelSBC820 – 112071 dBA
