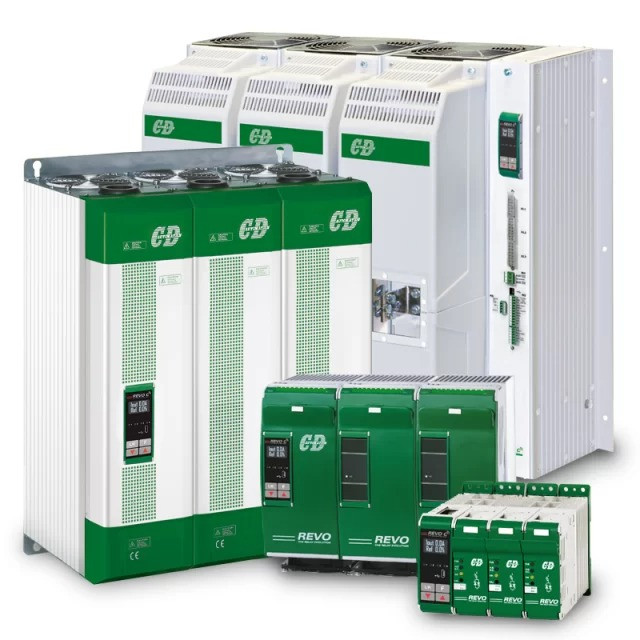

CD Automation REVO C 3PH Revo Connect – Three-Phase Power Controller

CD Automation

Product Code: REVO C 3PH
Brand: CD Automation



GET OFFER: info@imtek.com.tr

Description for CD Automation REVO C 3PH Revo Connect – Three-Phase Power Controller

REVO C is an high reliability Universal SCR Power Controller that has an advanced microprocessor that makes it universal and fully configurable via software. Particular attention has been gived to the Connectivity with the most popular Field Bus.REVO Connect is fully Software configurable.Current Rating 30 to 2100A for 3 Phase unit.Voltage Range 480V, 600V and 690V +/-10%.CE-EMC Listed, EAC Listed, cUL 508 Listed up to 700A, UL Listed from 800A to 2100A.Universal Input: The std analog inputs 4:20mA and 0:10V and SSR Configurable via Software.All types of firing mode Half Cycle, Single Cycle, Burst Firing, Delayed Triggering Phase Angle and Soft Start.OLED display on front Unit: This display give better operator interface and delivers use-friendly intuitive messages.Universal Control Mode: Current, Voltage, Power, Open Loop.Integrated Data Logging with Storage: SD Memory Card with programmable Logging Intervals.High precision measurement (True RMS Value for V,I and VxI) ≤1%Integrate Fuse: This reduce labor and space and gives the possibility to use a part of fan cooling air to reduce the temperature of semiconductor fuses and reduce the mounting space inside the cabinet.Greater protection in case of Short Circuit: 100 KA Short Circuit Current rating (SCCR) up to 600V.Generous sizing of Thyristors and Thermal Parts using high efficency Heatsink.Wide range of communication protocols: Control board has been engineered to plug on it different Field Bus boards.Optional Bluetooth connection for communication and control of the unit via APP.Free CD Automation APP for Android and iOS, for unit control with Bluetooth.The USB port on the front of the unit for configuration allows the REVO C to be configured easily and safely, as the unit is powered by the USB port itself (no load and auxiliary voltage required).Energy Counter Totalizer: This is available as an option and can be useful to define the cost per hour of heating system.Fully compatible with REVO M and REVO CL serie: This is an important Feature because allows to substitute old REVO with REVO C The number of terminal blocks is the same to facilitate the substitution.Integrate Load Analyzer: This is an important Feature that can help the operator for troubleshooting problems. This is a Real Wave Form Load Monitoring.Technical FeaturesPhases: 3Current Range from 30 to 2100A.Voltage Range 480V, 600V and 690V +/-10%.Inputs: 0:20mA, 4:20mA, 0:10V, SSR and ModBus as std and different Field Bus Listed in the Product CodingFiring mode: Burst Firing, Delayed Triggering and Phase Angle with or without Soft StartControl Mode: Voltage, Current and Power or V2 and I2 with additional Transfer to VxIUSB: port integrated for configuration in safety mode (No Load and Auxiliary Voltage needed) Unit Powered Through USB100 kA: Short Circuit Current Rating (SCCR) up to 600VApprovals CE+EMC; EAC; cUL from 30A to 500A, UL from 600A to 2100A
