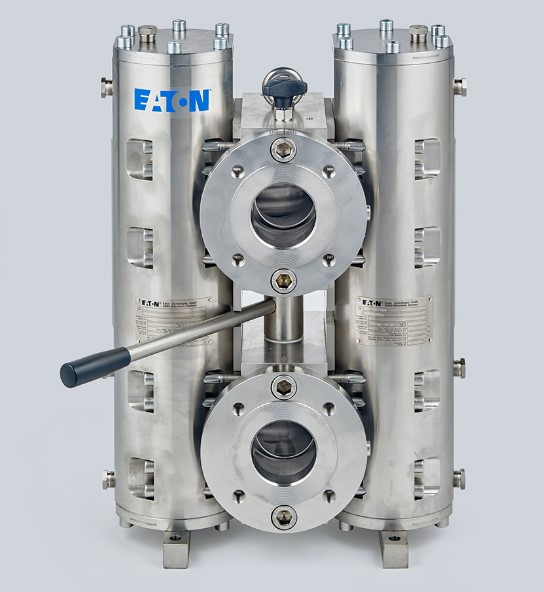

Eaton EDA 106 Duplex Filter

Quantity :

Request an Offer

97% customer satisfaction based on last 45 days of sales

Eaton EDA 106 Duplex Filter

Visit product range

Visit product range

Ask for Stock

Brand:

Eaton

Product Code:

EDA 106

Order Processing & Delivery Information:
As we supply industrial equipment, product availability and delivery timelines may vary. Once your order is placed, our sales team will contact you within 24 business hours (excluding weekends and holidays) to confirm stock status and estimated delivery time.

Tags and Keywords:

Eaton EDA 106 Duplex Filter Duplex Eaton EDA 106 Filter EDA 106 Duplex EDA 106 Eaton EDA 106 Duplex Filter Eaton EDA Duplex Filter

🎯 Need a Quote for Eaton EDA 106 Duplex Filter?

Get the best price and fastest delivery for Eaton EDA 106 Duplex Filter from Eaton. Imtek Engineering offers worldwide industrial equipment supply with expert support.

📧 info@im-tek.com 📞 Phone Support Available

Details:

EDA (ASME Design)The duplex configuration of
the newly designed EDA series filter can operate continuously, eliminating the
need to shut down for cleaning or service. When a filter element change out or
service is required, the user can divert the filtration flow from one side to
the other. A pressure equalization system assures consistent pressure while the
flow is being transferred.FILTER TYPEInline mountedMAX. OPERATING
PRESSURE580 psi (40 bar)OPERATING
TEMPERATURE14-212 °F (-10-100 °C)

Core features

Changeover
valve
High
intrinsic stability
Excellent
filtration capability
High
dirt-retaining capacity
Long
service life.
ASME U
stamp is available
Applications
Suitable
for petroleum based fluids
HW-emulsions
Most
synthetic hydraulic fluids and

lubrication oils

SPECIFICATIONS

operating temperature:	+14°F to +212°F
operating medium:	mineral oil, other media on request
max. operating pressure (pressure vessel):	580 PSI
test pressure acc. to ASME VIII Div. 1:	1,3 x operating pressure = 754 PSI
test pressure acc. to API 614, Chapter 1:	1,5 x operating pressure = 870 PSI
connection system:	SAE-flange 3000 PSI or ANSI-flange B16.5 CLASS 150/300 PSI
housing material:	stainless steel, see sheet-no. 69578
sealing material:	Nitrile (NBR) or Viton (FPM), other materials on request
installation position:	vertical
bleeder connection:	NPT ½“
drain connection dirt side:	NPT ½“
drain connection clean side:	NPT ½“
volume tank:	2x 0.17 Gal.
operating pressure adapter flanges:	according to B16.5 CLASS 150/300 PSI
