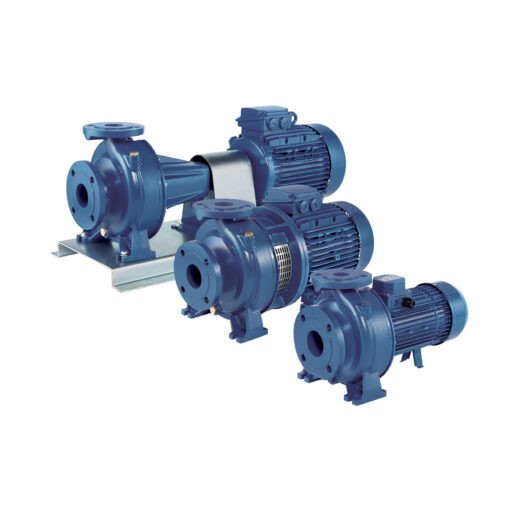

Ebara 80-200/3 Centrifugal Pump

Ebara

Product Code: 80-200/3
Brand: Ebara



GET OFFER: info@imtek.com.tr

Description for Ebara 80-200/3 Centrifugal Pump

Technical dataFlow rateUp to 138 m³/hTotal headUp to 70,0 mMax. working pressure10 barMax. temperature of the liquid-5°C ÷ +90°C-5°C ÷ +110°C for H, HS, HW, HSW versions-5°C ÷ +120°C for E versionMEI> 0.4Poles2 and 4Insulation classFProtection degreeIP55VoltageSingle-phase 1~230V ±10%Three-phase 3~230/400V ±10%Three-phase 3~400/690V ±10%MaterialsPump bodyCast ironImpellerStainless steel AISI 304 (EN 1.4301)Stainless steel AISI 316 (EN 1.4404) precision-cast for 3D SERIES 65ShaftStainless steel Stainless steel 304 (EN 1.4301)Stainless steel 420 (EN 1.4021) (MMD)Mechanical sealStandard = Ceramic/Carbon/NBRH = Graphite/Ceramic/FPMHS = Silicon Carbide/Silicon Carbide/FPMHW = Tungsten Carbide/Tungsten Carbide/FPMHSW = Silicon Carbide/Tungsten Carbide/FPME = Graphite/Ceramic/EPDMMotor supportCast iron for 32-200/3, 15, 18.5 and 22 kW modelsAluminium for the rest of the range
