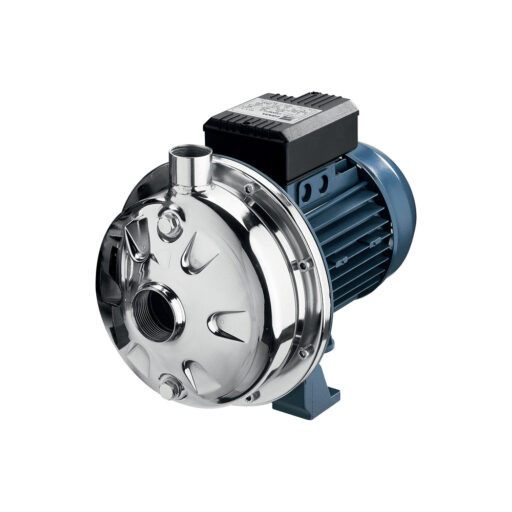

Ebara CDX 200/306 Centrifugal Pump

Ebara

Product Code: CDX 200/306
Brand: Ebara



GET OFFER: info@imtek.com.tr

Description for Ebara CDX 200/306 Centrifugal Pump

Technical dataFlow ratefrom 1.2 to 15 m³/hTotal headFrom 37.5 to 12.5 mMax. working pressure8 barMax. temperature of the liquid-5°C ÷ +60°C for CDX(L) 70/05-70/07-90/10 std and E versions-5°C ÷ +90°C for the rest of the std version-5°C ÷ +110°C for H, HS, HW, HSW versions-5°C ÷ +120°C for the rest of E versionMEI> 0.4Poles2Insulation classFProtection degreeIP55VoltageSingle-phase 1~230V ±10%Three-phase 3~230/400V ±10%MaterialsPump bodyStainless steel AISI 304 (EN 1.4301) (CDX)Stainless steel AISI 316L (EN 1.4404) (CDXL)ImpellerStainless steel AISI 304 (EN 1.4301) (CDX)Stainless steel AISI 316L (EN 1.4404) (CDXL)ShaftStainless steel AISI 303 (EN 1.4305) (CDX)Stainless steel AISI 316L (EN 1.4404) (CDXL)Mechanical sealStandard = Ceramic/Carbon/NBRH = Graphite/Ceramic/FPMHS = Silicon Carbide/Silicon Carbide/FPMHW = Tungsten Carbide/Tungsten Carbide/FPMHSW = Silicon Carbide/Tungsten Carbide/FPME = Graphite/Ceramic/EPDMMotor supportAluminium
