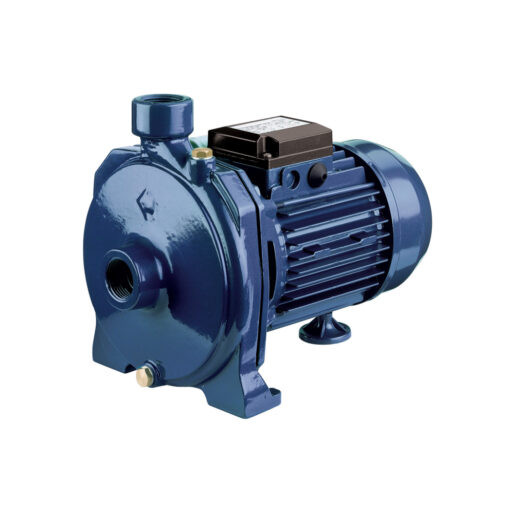

Ebara CMC 0,75 T Centrifugal Pump
Ebara
Product Code: CMC 0,75 T
Brand: Ebara
GET OFFER: info@imtek.com.tr
Description for Ebara CMC 0,75 T Centrifugal Pump
Technical dataFlow ratefrom 1.2 to 60.5 m³/hTotal headFrom 5.2 to 57.0 mMax. working pressure6 bar for CMA 0.50-0.75-1.00CMB 0.75-1.00-1.50-2.00-3.00CMC, CMD8 bar for CMA 1.50-2.00-3.00CMB 4.00-5.50Max. temperature of the liquid+40°C for CMA 0.50-0.75-1.00+90°C for the rest of the rangeMEI> 0.4Poles2Insulation classFProtection degreeIP44VoltageSingle-phase 1~230V ±10%Three-phase 3~230/400V ±10%MaterialsPump bodyCast ironImpellerin PPE+PS with glass fibres for CMA 0.50 - 0.75 - 1.00in brass for CMA 1.50 - 2.00 - 3.00CMB 2.00 - 3.00 - 4.00 - 5.50in cast iron for CMB 0.75 - 1.00 - 1.50, CMC, CMDShaftin AISI 416 (EN 1.4005) (integral) for CMA 0.50in AISI 303 (EN 1.4305) (part in contact with liquid) for CMA 0.75-1.00-1.50-2.00-3.00CMB 0.75-1.00-1.50-2.00-3.00CMC 0.75-1.00, CMD 1.50-2.00-3.00in AISI 304 (EN 1.4301) (part in contact with liquid) for CMB 4.00-5.50Mechanical sealCeramic/Carbon/NBR (standard)Motor supportin aluminium for CMA 0.50-0.75-1.00CMB 0.75-1.00CMC 0.75-1.00in cast iron for the rest of the rangeRecommended Products For Ebara
