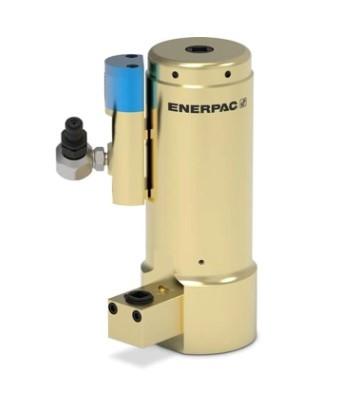

Enerpac PGTD3655S Hydraulic Power Generation Bolt Tensioner
Enerpac
Product Code: Enerpac PGTD3655S Hydraulic Power Generation Bolt Tensioner
Brand: Enerpac
GET OFFER: info@imtek.com.tr
Description for Enerpac PGTD3655S Hydraulic Power Generation Bolt Tensioner
Model: PGTD3655S | ECCN: EAR99 | Harmonization: 8479899599Series: PGT | Product Line: Bolting ToolsPGT-Series Bolt Tensioners are designed for critical fastening applications in wind, steam and gas turbinesA broad range of single stage and double deck tensioners provide high performance in tight spaces associated with Power Generation applicationsPGT-Series Bolt Tensioners are loaded with performance enhancing features such as Auto-Retract Pistons, Cycle Counters and a premium coating to offer the ultimate in efficiency, durability and ease of use.Auto-retract piston: Simplifies use and improves speed of operation.Long-life puller: For maximum durability.Long-life seals: For maximum durability and extended service life intervals.Corrosion protection: Zinc coating provides best-in-class corrosion resistance.Interchangeable bridge: For optimal application fit.Over-stroke preventer: Mechanically prevents over-stroke, extending cylinder life.Over-stroke indicator: Extends cylinder life by helping to prevent over-stroking of cylinder.Optional counter: Helps indicate when maintenance is due to maximize uptime.Quick-disconnect coupler: For safe, simple hydraulic connection.Optional 360° swivel: available for additional hose positioning flexibility.Spring-loaded nut engagement: Keeps socket positioned on nut for faster and easier seating process.Auto-engage nut rundown: For rapid and accurate seating of nuts.SpecificationsUnits:ImperialMetricMaximum Operating Pressure (psi)19,575Bolt Diameter (in)1.42Bolt Diameter (mm)36Threaded Fastener Range (mm)M36 x 4,0Nut A/F (in)2.17Nut AF (mm)55Cylinder Effective Area (in2)7.74Load Capacity (Imperial Tons)75.8Stroke (in)0.31Minimum Bolt Protrusion (in)2.76Maximum Bolt Protrusion (in)3.43Weight (lbs)17.06Recommended Products For Enerpac
