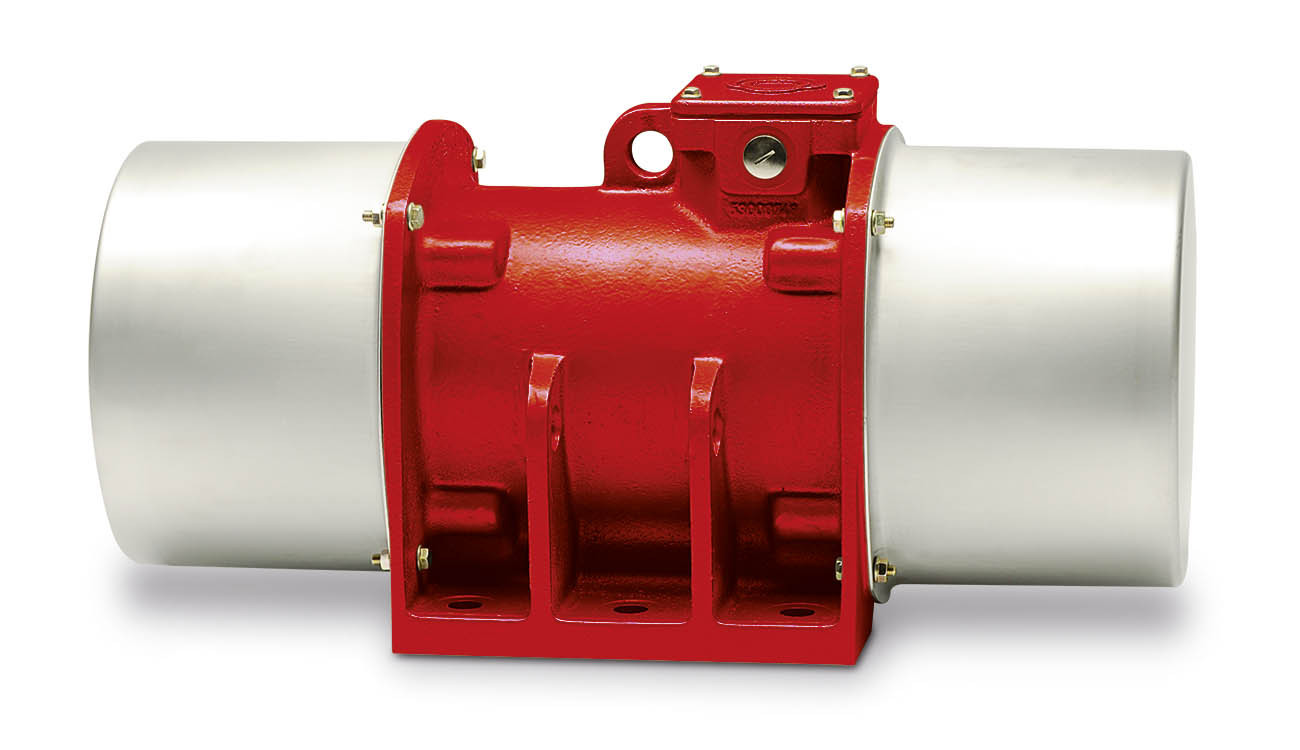

Friedrich F 2000-10-7.0 Vibrator Motor F-Type

Friedrich

Product Code: F 2000-10-7.0
Brand: Friedrich



GET OFFER: info@imtek.com.tr

Description for Friedrich F 2000-10-7.0 Vibrator Motor F-Type

General specificationsPower Supply:Voltage from 115 V to 690 V at 50 Hz and 60 Hz are available.Degree of Protection:IP 66Thermal class:F (155 °C) according to DIN EN 60034-1Tropical Insulation:StandardElectrical Connection:Use high flexible cable for heavy mechanical stress for example: H07RN-F or A07RN-F according to DIN VDE 0282.Permissible Ambient Temperature:-20 to +40 °C.Special versions with cold steel to -65 °C are available upon request.Operating Mode:Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.Hoods:Hoods made from pressed sheet metal or stainless steel comprise the special shape. A silicone seal provides optimum protection against the ingress of dust and water.Assembly:Without limitation, motors can be mounted in any position.Color Coating:Standard RAL 6011. Other colors available on request.Type Code:The type code is read as follows:First block number = Working Moment in kgcm (Working Moment = 2 x Static Moment)This is followed by a hyphen and then the pole number.Where: 4 = 1460 rpm, 6 = 980 rpm (50 Hz primary frequency).Behind the second dash, the size is specified.Sonderausführungen und Zubehör auf Anfrage:Anti-Condensation HeatingThermistorSplit End Covers (see special catalog)Special steel bearing retainer (see special catalog)Waterproof terminal box with special sealant shed, connection cables with different specifications in different lengths are also available
