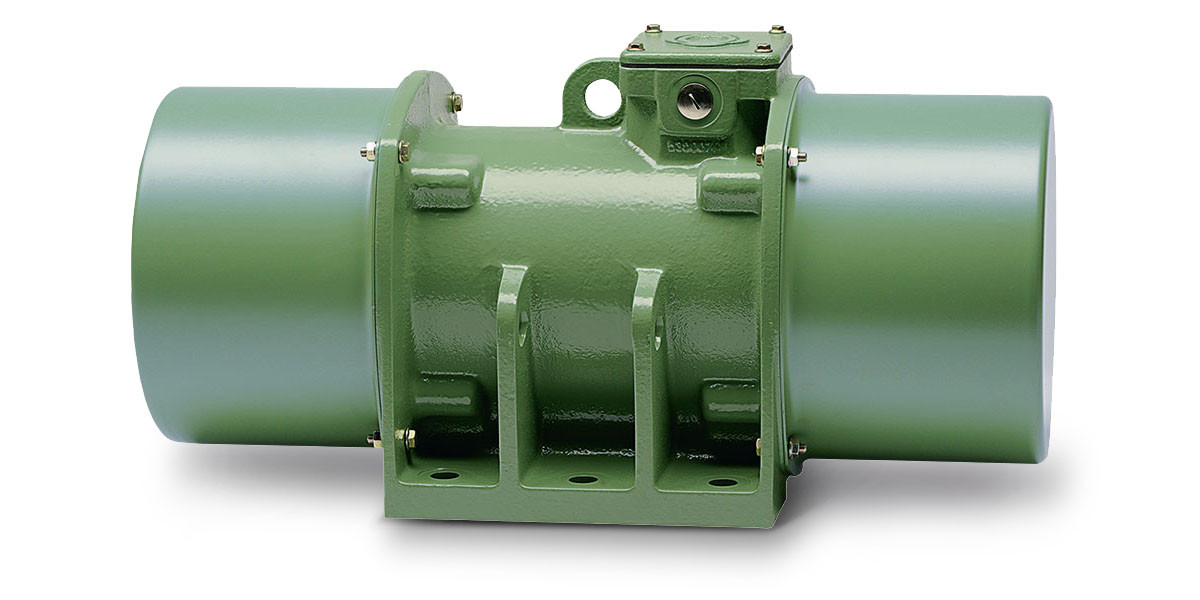

Friedrich FD 2000-8-7.8 Vibrator Motor with steel bearing cover FD-Type

Friedrich

Product Code: FD 2000-8-7.8
Brand: Friedrich



GET OFFER: info@imtek.com.tr

Description for Friedrich FD 2000-8-7.8 Vibrator Motor with steel bearing cover FD-Type

General specificationsPower Supply:Voltages from 115 V to 690 V at 50 Hz and 60 Hz availableDegree of Protection:IP 66Thermal class:F (155 °C) according to DIN EN 60034-1Tropical insulation:StandardElektrischer Anschluss:Use high flexible cable for heavy mechanical stress, for example: H07RN-F or A07RN-F according to DIN VDE 0282.Permissible ambient temperature:-20°C to +40 °C.Special versions with cold steel to -65 °C also available on request.Operating mode:Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.Hoods:Hoods made from pressed sheet metal or stainless steel comprise the special shape. A silicone seal provides optimum protection against the ingress of dust and water.Assembly:Without limitation, motors can be mounted in any position.Color coating:Standard RAL 6011. Other colors available on request.Type code:The type code is read as follows:First block number = working moment in kgcm(working moment = 2 x static moment)This is followed by a hyphen and then the pole number.Where: 4 = 1460 rpm 6 = 980 rpm (at 50 Hz mains frequency)Behind the second dash, the size is specified.Special designs and accessories available on request:Anti-condensation heatingThermistorsplit hoods (see special catalog)Coupled motors (see special catalog)Waterproof terminal box with a special sealant shed, connection cables with different cable specifications in different fixed lengths to choose from
