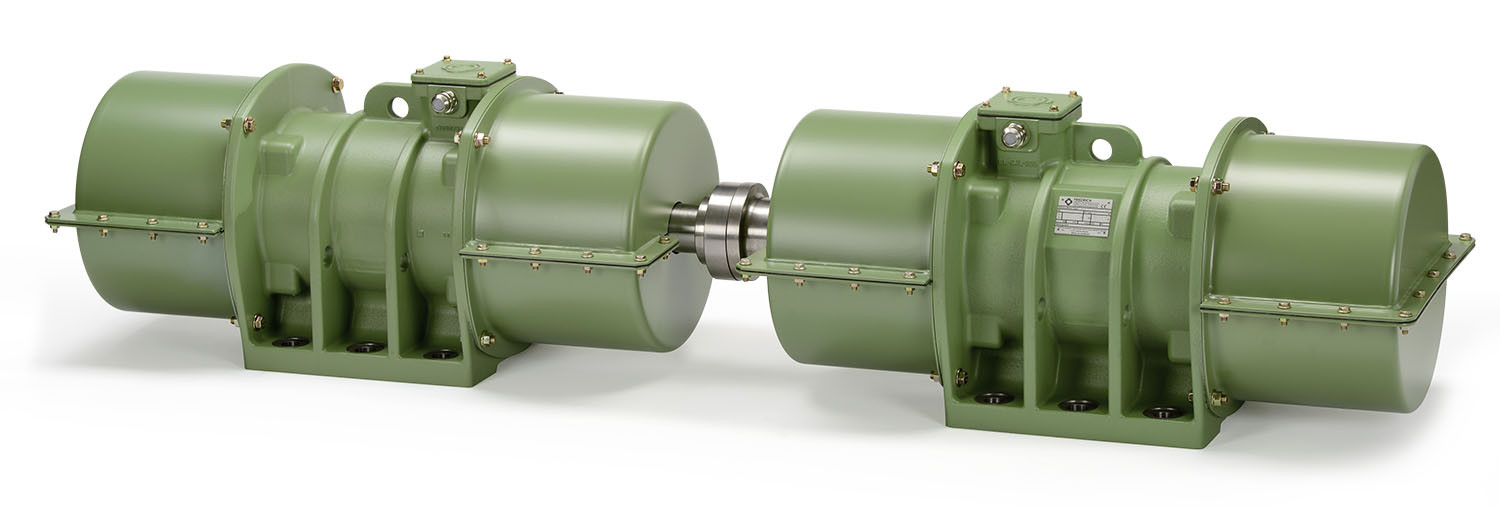

Friedrich FK 3000-6-8.9 Coupled Motor FK-Type

Friedrich

Product Code: FK 3000-6-8.9
Brand: Friedrich



GET OFFER: info@imtek.com.tr

Description for Friedrich FK 3000-6-8.9 Coupled Motor FK-Type

General specificationsPower Supply:Voltages from 115 V to 690 V at 50 Hz and 60 Hz availableDegree of Protection:IP 54Thermal class:F (155 °C) according to DIN EN 60034-1Tropical Insulation:StandardElectrical Connection:Use high flexible cable for heavy mechanical stress for example: H07RN-F or A07RN-F according to DIN VDE 0282.Permissible ambient temperature:-20 to +40 °COperating mode:Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.Hoods:Hoods made from pressed sheet metal, comprise the special shape. A silicone seal provides optimum protection against the ingress of dust and water.Assembly:Without limitation, motors can be mounted in any position.Color Coating:Standard RAL 6011. Other colors available on request.Type code:The type code is read as follows:First block number = working moment in kgcm(working moment = 2 x static Moment)This is followed by a hyphen and then the pole number.Where: 4 = 1460 rpm 6 = 980 rpm (at 50 Hz mains frequency).Behind the second dash, the size is specified.Special designs and accessories available on request:Anti-condensation heatingThermistorsplit end covers (see special catalog)Special steel bearing retainer (see special catalog)Waterproof terminal box with a special sealant shed, connection cables with different Cable specifications in different lengths available
