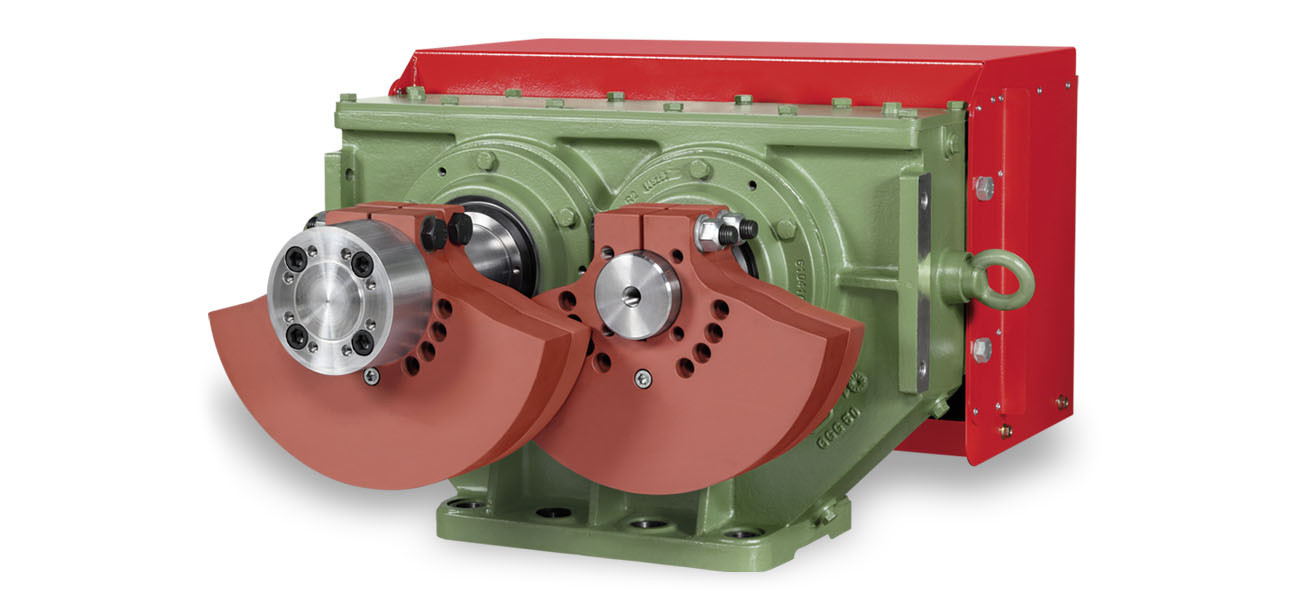

Friedrich UEV 40-8 F16 Unbalance Exciters

Friedrich

Product Code: UEV 40-8 F16
Brand: Friedrich



GET OFFER: info@imtek.com.tr

Description for Friedrich UEV 40-8 F16 Unbalance Exciters

General specificationsAllowable Operating ambient temperature:An ambient temperature of -40°C to +50°C and an operating temperature of 80°C must not be exceeded. Depending on the ambient temperature, a transmission oil is used with the required viscosity. Please consult FRIEDRICH for other operating temperatures.Drive Motor Selection:The drive motor can be all standard AC motors with 50Hz. The tightening torque must be in the range of 0-300rpm 2.5-fold amount of nominal value. When pairing two or more Unbalance Exciters on link propeller shafts, the drive motor chosen must be correspondingly larger.Type Code:The first two letters are an abbreviation for Unbalance Exciter. The following figures give a hundredth of the maximum working torque in kgcm (Working Moment = 2 x static moment). This is followed by a hyphen and the maximum permissible speed of the drive motor which is indicated by the pole number.
