General information:

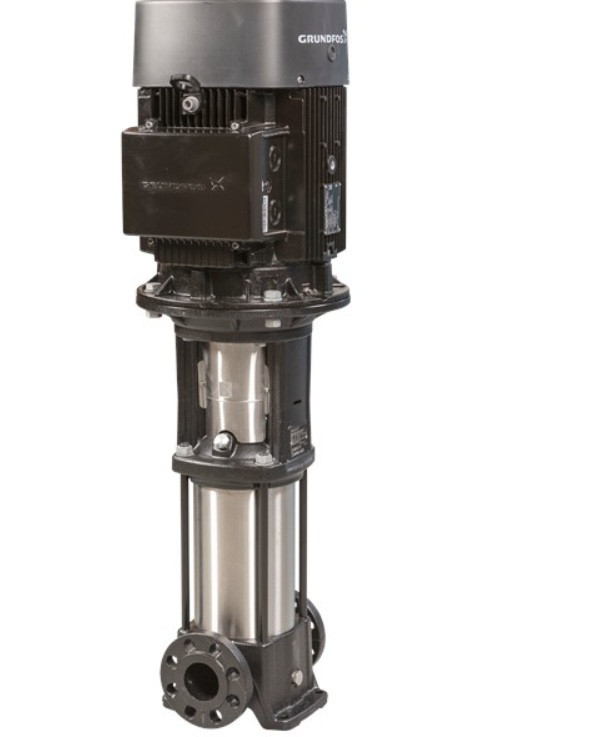

Product name: CR 20-10
A-F-A-E-HQQE
Product No: On request
EAN number: On request
Technical:
Pump speed on which pump data are
based:
2924 rpm
Rated flow: 21 m³/h
Rated head: 118 m
Maximum head: 148 m
Stages: 10
Impellers: 10
Number of reduced-diameter impellers: 0
Low NPSH: N
Pump orientation: Vertical
Shaft seal arrangement: Single
Primary shaft seal: HQQE
Code for shaft seal: HQQE
Approvals: CE,EAC,UKCA,SEPRO,
Approvals for drinking water: WRAS,ACS
Curve tolerance: ISO9906:2012 3B
Pump version: A
Model: A
Materials:
Type key, code for materials: A
Type key, code for rubber components. E
= EPDM, V=FKM:
E
Base: Cast iron
EN 1561 EN-GJL-200
ASTM A48-25B
Impeller: Stainless steel
EN 1.4301
AISI 304
Material code: A
Code for rubber: E
Bearing: SIC
