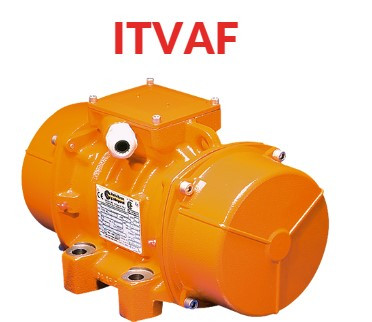

Italvibras ITVAF 6/1510-S08 603054 High-frequency Electric Vibrator

Italvibras

Product Code: ITVAF 6/1510-S08
Artikelnummer: 603054
Brand: Italvibras



GET OFFER: info@imtek.com.tr

Description for Italvibras ITVAF 6/1510-S08 603054 High-frequency Electric Vibrator

Power supply Three-phase voltage from 24V to 690V at the various frequencies, depending on the type and series. For the power supply of the vibrators it is possible to use electronic frequency drives or electromechanical frequency converters. Conformity with Standards and Regulations Low Voltage Directive 2014/35/UE; EN/IEC 60034-1; UL 1004-1, CSA C22.2 No.100, NEMA MG-1. Operation Continuous service (S1) at the maximum declared centrifugal force and electric power values. Centrifugal force Range extended up to 5300 kgf (52 kN) with force output adjustable by varying weights position. Mechanical protection IP 66 according to IEC/EN 60529. Protection against mechanical impacts IK 08 according to IEC/EN 62262. Insulation class Class F (155°C). Tropicalization Standard on all vibrators, with vacuum encapsulation up to size AF33 and for frame size AF70, with “drop by drop” trickle system for sizes AF50 and AF68. (on request vacuum encapsulated winding may be supplied for these two frame sizes). Ambient temperature To operate correctly, from -20°C to +40°C. Vibrator thermal protection With PTC rated thermistor heat detectors 130°C installed as part of the standard assembly size AF70 onwards. Also on request thermistors with different temperatures and anti-condensation heaters can be assembled on the lower sizes. Fixing of the vibrator In all positions and therefore without restriction. Two different types of connection are available for the ITV-VR and ITVAF series: fixed connection, where the electric vibrators are connected to the structure by bolts through fixing holes and the RS cradle connection, where the electric vibrators are connected to the structure with the standardized cradle type RS2 except for frame size AF10, for this the cradle fixing is type RS1. Lubrication All the electric vibrators are correctly lubricated in our factory and need no further lubrication at start-up.
