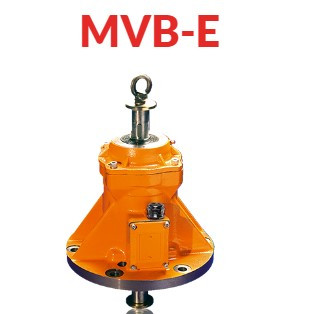

Italvibras MVB 1510/15-E 6E1226 Flanged Electric Vibrator

Italvibras

Product Code: MVB 1510/15-E
Artikelnummer: 6E1226
Brand: Italvibras



GET OFFER: info@imtek.com.tr

Description for Italvibras MVB 1510/15-E 6E1226 Flanged Electric Vibrator

Power supply Three-phase voltage from 220V to 690V, 50Hz or 60Hz; variable frequency (in presence of PTC thermistor) from 20Hz to the base frequency with constant torque load profile type PWM. Polarity 4 poles. Conformity with Standards and Regulations ATEX Directive 2014/34/UE; EN/IEC 60079-0, EN/IEC 60079-7, EN/IEC 60079-31, EN/IEC 60034-1. Controls The components that affect protection are 100% accurately controlled and recorded. Functioning Continual service (S1) at maximum declared centrifugal force and electric power. Centrifugal force 1500 Kgf. (14.7 KN), adjustable with variation of the eccentric weights. Mechanical protection IP 66 according to IEC/EN 60529. Protection against mechanical impacts IK 08 according to IEC/EN 62262. Insulation class Class F (155°C). Tropicalization Standard with “drop by drop” trickle system. Ambient temperature From -20°C to +40°C, on request it is possible to have vibrators for max. ambient temperature +55°C. Vibrator thermal protection On demand with PTC rated thermistor heat detectors 130°C. Also on request thermistors with different temperatures and anti-condensation heaters. Fixing of the vibrator In all positions and therefore without restriction. Lubrication All vibrators are lubricated in the factory and do not require further lubrication at start-up. Terminal box Large terminal box to facilitate electrical connection. Special shaped terminals allow for the power supply cable to be secured, whilst protecting it from loosening. Electric motor Three-phase asynchronous type. Designed for maximum starting torques and orque curves specific to requirements of vibrating machines.
