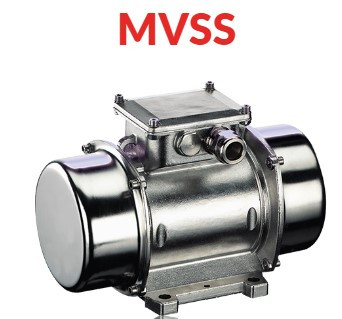

Italvibras MVSS 15/1710-S02 601350 Electric Vibrator in Stainless Steel

Italvibras

Product Code: MVSS 15/1710-S02
Artikelnummer: 601350
Brand: Italvibras



GET OFFER: info@imtek.com.tr

Description for Italvibras MVSS 15/1710-S02 601350 Electric Vibrator in Stainless Steel

Power supply Three-phase voltage from 24V to 690V, 50Hz or 60Hz or single-phase 100-130V, 60Hz and 200-240V, 50Hz (single-phase types are supplied without capacitor); suitable for use with an inverter from 20Hz to the base frequency with constant torque load profile. Polarity 2, 4, 6 and 8 poles. Conformity with Standards and Regulations MVSS - Low Voltage Directive 2006/95/EC; EN/IEC 60034-1; UL 1004-1, CSA C22.2 No.100, NEMA MG-1. MVSS-P - Low Voltage Directive 2006/95/EC; ATEX Directive 2014/34/UE; EN/IEC 60034-1, EN/IEC 60079-0, EN/IEC 60079-31, UL 1004- 1, CSA C22.2 No.100, NEMA MG-1. Functioning Continual service (S1) at maximum declared centrifugal force and electric power. Intermittent services are also possible depending on the type of vibrator and the operating conditions. For detailed information, contact our technical assistance office. Centrifugal force Range extended up to 4300 kgf. (42.4 kN), with centrifugal force adjustable from 0 to 100%.Mechanical protection IP 66 according to IEC/EN 60529. Insulation class Class F (155°C), class H (180°C) on request. Tropicalization Standard on all vibrators, with vacuum encapsulation up to size 35, with “drop by drop” trickle system for larger sizes. Ambient temperature From -20°C to +40°C. Versions for higher or lower temperatures are available on request. Vibrator thermal protection Standard PTC rated thermistor heat detectors 130°C on size 70, on request for smaller sizes. For MVSS-P series PTC 130°C are standard for all types. On request, thermistors with different temperatures and anti-condensation heaters. Fixing of the vibrator In all positions and therefore without restriction. Lubrication All vibrators are lubricated in the factory and do not require further lubrication at start-up. Terminal box Large fixed electrical connections, with terminal board cover in stainless steel AISI 304. Special shaped terminals allow to fix the power supply cable, protecting it from loosening. Electric motor Three-phase and single-phase asynchronous type. Designed for maximum starting torques and torque curves specific to vibrating machines.
