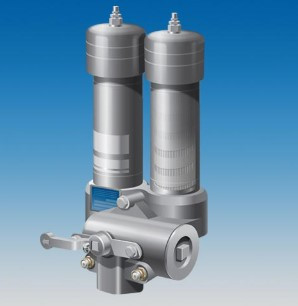

Pall HZ4754A24UB1 Duplex Filter

Pall

Product Code: HZ4754A24UB1
Brand: Pall



GET OFFER: info@imtek.com.tr

Description for Pall HZ4754A24UB1 Duplex Filter

4754/4751 Series Duplex FiltersSupralon™ lube and hydraulic oil filters deliver consistent, high level fluid system protection across all applications, regardless of severity. Supralon filters feature BetaX(C) >1000 filter efficiency, low pressure drop and long service life.Features Flows to 340 L/min (90 US gpm) Pressures to 450 bard (6500 psid) Port size: 1½” Notes and Specifications Filter Housing Fatigue Pressure Rating 400 bar (5800 psi) per NFPA T2.6.1 R2-2001 Cat C/90 Typical Burst Pressure: 1,600 bar (23,200 psi) Filter Element Collapse Pressure: 10 bard (150 psid) – 4754 series 207 bard (3000 psid) – 4751 series Fluid Compatibility: Compatible with all petroleum oils and most water glycols, water-oil emulsions, and synthetic hydraulic and lubricating fluids Temperature Range: -29 ˚C to 120 ˚C (-20 ˚F to 250 ˚F) 60 ˚C (140 ˚F) maximum in HWCF or water glycols Bypass Valve Setting: 3.4 bard (50 psid) – 4754 series Non-bypass – 4751 series Indicator Pressure Setting: 2.4 bard (35 psid) – 4754 series 7 bard (100 psid) – 4751 series Housing Materials of Construction: Ductile iron head; steel bowls
