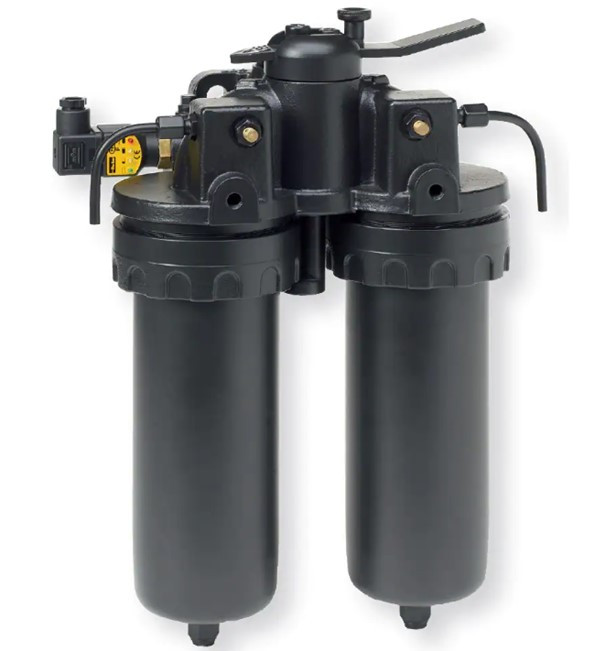

Parker DF2145210QVPXM262 Duplex Filter

Parker

Product Code: DF2145210QVPXM262
Brand: Parker



GET OFFER: info@imtek.com.tr

Description for Parker DF2145210QVPXM262 Duplex Filter

Low Pressure In-Line Duplex Filter - DF2145 SeriesThe DF2145 is a series of duplex filters suitable for fuel, lube and hydraulic systems. Suitable for flows up to 80 l/min and pressures up to 30 bar.Technical Specifications Flow Rate:80 L/min,0-250 L/minMounting Type:InlineHousing Material:Cast ironSeal Material:FluorelastomerPressure Rating:0-34 bar,0-500 psi barOperating Temperature:-20 / +120 °C,-20/+160 °CItem Information Items marked with an asterisk * in the drop-down menus are standard choices. The DF2145 duplex filter is a cast iron duplex filter for fuel, lube and hydraulic systems. Its duplex operation acounts for security and continuous flow. Several filtration media options include environmentally friendly Ecoglass III elements and allows wide selection of applications. The DF2145 has an integrated differential pressure switch connection for mounting a Visual, electrical or electronic indicator. The sturdy cast iron housing has a pressure rating up to 30 bar. Max. flow is 80 l/min. Side manifold block mounting connection flange is present. Applications: • Diesel engine fuel systems • Industrial lube oil systems • Industrial medium pressure hydraulic systems
