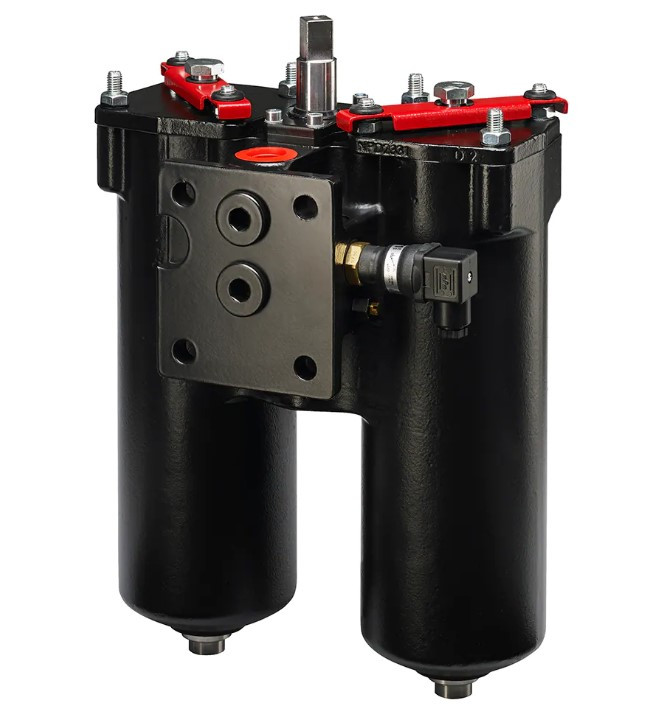

Parker DF25105QEVM3GG121 Duplex Filter

Parker

Product Code: DF25105QEVM3GG121
Brand: Parker



GET OFFER: info@imtek.com.tr

Description for Parker DF25105QEVM3GG121 Duplex Filter

Duplex filter for fuel, lube and hydraulic systems, maximum flow rate 100l/min (6m³/h).Technical Specifications·         Flow Rate:0 to 120 l/min·         Bypass Valve Pressure Rating:1.7 bar·         Connection Type:G3/4"·         Filter Element Type:Quantμmfiber Eco 5 μm·         Micron Rating:5 µm·         Indicator Type:Visual·         Options:1.2 bar·         Seal Material:Fluoroelastomer Item Information The DF25 is a duplex filter suitable for continuous operation. Both the selecting valve end positions are secured with a locking mechanism. Sturdy cast iron housing with a pressure rating of 40 bar. The DF25 has drain plugs at the bottom and air vent plugs at the top. Element change from the top provides for a clean and tidy service. There is an integrated connection for a differential pressure indicator. The filter has threaded connection ports and the flange can also be used for side-block mounting. Behind the flange there are plugged alternative connection ports: The IN-port on the left side and the OUT-port at the top. Applications: • Diesel engine fuel systems • Industrial lube oil systems • Industrial medium pressure hydraulic systems
