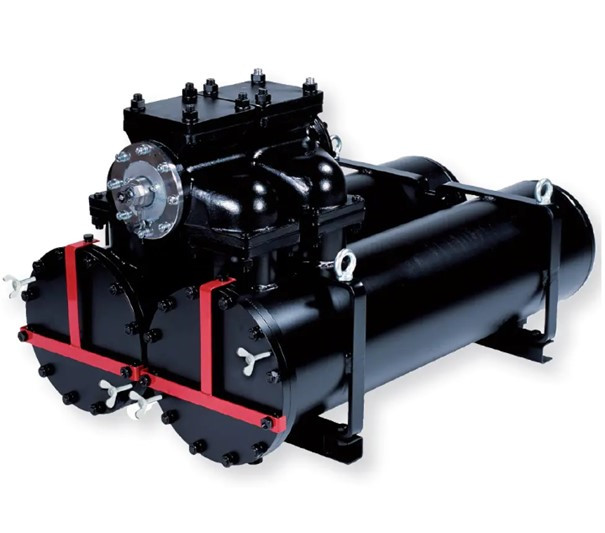

Parker DFH2060310QVT1HX1601 Duplex Filter

Parker

Product Code: DFH2060310QVT1HX1601
Brand: Parker



GET OFFER: info@imtek.com.tr

Description for Parker DFH2060310QVT1HX1601 Duplex Filter

The DFH2060 is a series of low pressure, high flow duplex filters for diesel engine and industrial lubricating systems.Suitable for flows up to 2200 l/min and pressures up to 10 bar.Technical SpecificationsIndicator Type:Electrical NO/NC *Filter Element:10Q Microglass *Flow Rate:2200 L/minSeal Material:FluorelastomerBypass Valve Pressure Rating:2,0 barPort Type:160 mm Square flange & Blind counter flangeOptions:With bypassMounting Type:InlinePressure Rating:10 barHousing Material:Steel/Cast ironOperating Temperature:-20 / +120 °CItem InformationItems marked with an asterisk * in the drop-down menus are standard choices.The DFH2060 series is a low pressure, high flow, high performance, minimum height duplex filter for use in lubrication system applications.It has a Slim welded housing construction with cast iron change over valve section.The DFH2060 filter is for horizontal mounting, making assembly easier in cranked positions.It offers several element media options for high dirt holding capacities and low pressure drops.One reservoir can be closed for service.The DFH2060 has 160 mm square flange connections that come with mounted blind flanges.Maximum flow rate up to 2200 l/min. Maximum pressue 10 bar.Applications:• Heavy duty diesel engine lubricating systems• High flow industrial lubricating systems
