High-performance motor drive applicable to:
– Three-phase asynchronous motors
– Three-phase synchronous motors
– Sinusoidal current regenerative AFE from 1.3kW a 3000kWThe drives of the Sinus PENTA series come with multiple speed control modes and torque control modes for three-phase asynchronous and synchronous motors. Those control modes are user-selectable and ensure optimum performance in terms of accuracy and energy saving for each specific industrial application.
– Fully made of steel
– Wide range of operating temperature with no derating: -10°C to 55°C
– Tropicalized boards (conformal coating)
– Overload up to 200% for 2 minutes every 20 minutes or 1 minute every 10 minutes (depending on the drive model)
– Peak current up to 240% for 3 seconds
– Input frequency: 50-60Hz
– Integrated RS485 serial port, MODBUS RTU communications protocol
– Wide range of integrated protection features
– Output frequency adjustment from 0 to 599Hz (up to 1000Hz on demand)
– Degree of protection IP00, IP20, IP54
– Parallel configuration also available
– Smart cooling system – Through-panel assembly for the segregation of the servoventilation channels
– SINUS PENTA CABINET/BOX in electrical cabinet also available
– Compatible with TN-S, TN-C, TN-CS and TT networks Compatibility with IT networks available on demand
– Manufactured with top quality materials, totally Made in Italy
– Integrated Safe Torque Off (STO) function, Sil3 and EN ISO 13849-1, PL-d
– Certification: CE, UL, EAC, RCM
– Compatible with the Easy Harmonics software computing harmonic current damping
– Compatible with the “REMOTE DRIVE” software for the remote control of the device

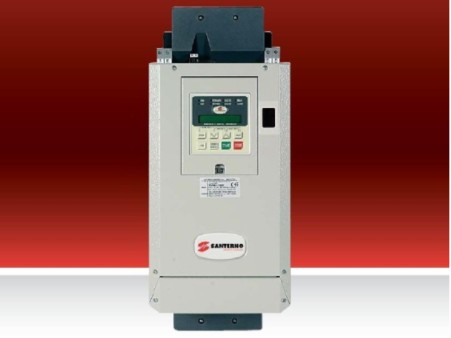

Get the best price and fastest delivery for Santerno A0067 4T BA2K2 SINUS PENT , 380 V Multi-function Ac Drive from Santerno. Imtek Engineering offers worldwide industrial equipment supply with expert support.
