SKF W 618/5 R Deep Groove Ball Bearing

SKF

Product Code: W 618/5 R
Brand: SKF

GET OFFER: info@imtek.com.tr

Description for SKF W 618/5 R Deep Groove Ball Bearing

Technical specification MetricImperial DIMENSIONS d 5 mmD 11 mmB 3 mmd1? 6.81 mmD1? 9.19 mmD3 12.5 mmC 0.8 mmr1,2min. 0.15 mm ABUTMENT DIMENSIONS damin. 6.2 mmramax. 0.15 mm CALCULATION DATA Basic dynamic load ratingC 0.403 kNBasic static load ratingC0 0.143 kNFatigue load limitPu 0.006 kNReference speed 120000 r/minLimiting speed 75000 r/minCalculation factorkr 0.02Calculation factorf0 7.1 MASS Mass bearing 0.0013 kg

Recommended Products For SKF

SKF W 623-2Z Deep Groove Ball Bearing

SKF 6317 ZZ C3 Bearing

SKF SNL 520-617 Housing

SKF 6015-2Z Bearing

SKF 6322 M/C3VL0241 Ball Bearing

SKF 608-2RSL Deep Groove Ball Bearings

SKF 6311-2Z Bearing

SKF 7005 ACD/HCP4AH Ball Bearing

SKF TSN 526-A Seal V-ring

Skf SNL528 22228K H3128 FRB15/250 TSN528S Plummer Block

SKF TSN 218 L Bearing Housing

SKF D/W R4A-2Z Deep Groove Ball Bearings

SKF 6414/C3 Bearing

SKF W 619/6 Deep Groove Ball Bearings

SKF C4010 TN9 Carb Bearing

SKF 7209 BECBM Bearing

SKF W 627/5 XR Deep Groove Ball Bearings

SKF 2207 E-2RS1TN9 Self-aligning Ball Bearing

Faggiolati G416R2C3-S100AA2 Pump

Rotork RC-230SR Actuator

Goyen K2501 Diaphragm Kit

Westcar LRV-5-00 Rotoflexi Joint

FIP Italy SXELV Series DN 65÷100 Easyfit Ball Check Valve

Westcode N1661VF360 Phase Control Thyristors-Capsule

KSB MCPK050-032-200 CC NP2 A Pump

Aron AD3EO3CM-3 Valve

Adler FT4 DN15 HEATING JACKET VALVES

Martens GTH 175 PT-T-WPT2 Precision Pocket Thermometer

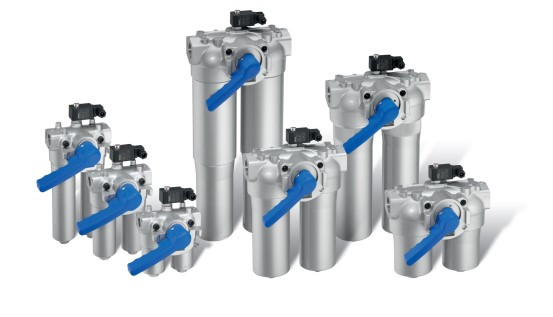

Mahle Pi 2130-068 77774516 Duplex Filter
