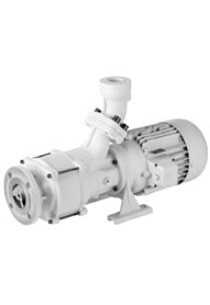

Brinkmann BGL/SBG1101 Horizontal End-Suction Pump

Brinkmann

Product Code: BGL/SBG1101
Brand: Brinkmann



GET OFFER: info@imtek.com.tr

Description for Brinkmann BGL/SBG1101 Horizontal End-Suction Pump

BGL/SBG1101, 1102, 1103 – Axial/Semi-open impellersHorizontal End-Suction Pumps are centrifugal inline pumps with a compact design where the impeller is mounted onto the extended motor shaft. These pumps are not self-priming and must be gravity fed. All pumps are equipped with a single mechanical seal. Upon request a second mechanical seal is available to allow for dry-running (-GD).This pump series is designed for horizontal installations next to a tank and for pumping highly air entrained coolant and cutting oils, as they occur in high speed grinding applications.The SBG pumps are equipped with the user-friendly 45 degree flange connection which allows for either vertical or horizontal pipe connection and the connection of a pressure gauge with G ¼.For more information see mechanical features within the technical information section.Applications Types of fluid water coolants cooling/cutting oils grinding oilsKinematic viscosity45 mm²/s (45 cSt)Pumping temperature 0 – 80°C ConstructionPump bodyCast ironCoverCast ironImpeller axialCast steelImpeller radialCast steelShaftSteelMechanical sealSiCNoise levelBGL/SBG110172 dBABGL/SBG1102 – 110375 dBA
