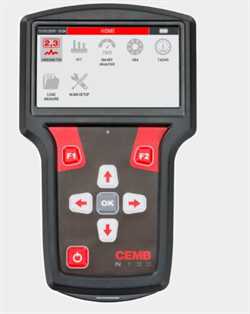

Cemb N130 Vibrometer

Cemb

Product Code: N130
Brand: Cemb



GET OFFER: info@imtek.com.tr

Description for Cemb N130 Vibrometer

Single Channel Portable Vibrometer and Machine Analyzer with 4,3" graphic display - Vibration and Smart Analysis up to 10 KHzPortable Vibrometer , Machine analyser, Spectrum analyserThe smart solution for vibration analysisHeavy duty instrument, quick&Easy to useSmart Analysis FeatureGENERAL CHARACTERISTICSDisplay a colori 4,3” TFT LCD (480 x 272 pixel) Nuova tastiera tattile EasyClick con tasti in rilievo Memoria interna: 14,8 Gb (espandibile a 128Gb) Interfaccia utente multi linguaMEASUREMENT TYPESEffective value (RMS) Peak value (Pk) Peak-to-peak value (PP)MEASURING PERFORMANCEBandwidth: 1-10 KHz FFT Resolution: Max 3200 lines Tacho: Up to 250000 rpmUNITS OF MEASUREMENTAcceleration: [g] Velocity: [mm/s] or [inch/s] Displacement: [?m] or [mils] Frequency: [Hz] or [Cpm]INPUT1 measuring channels IEPE sensor, accelerometer and velocimeter (with a specify cable pluggable on a BNC for read any dinamic signal max. 5V-PP) 1 photocell channel (velocity and angle reference) 1 MicroUSB 2.0 port for data transfer 1 jack plug for battery chargerAMBIENTTemperature: from -20° to +70° C Air humidity: from 0 to 95% without condensate Protection: IP54POWER SUPPLYLong Life Battery: > 8 hours based on typical use Charging time: 2,5 hours for 80% recharge 4 hours for 100% recharge Rechargeable 3100 mAh Lithium battery Power supply-battery charger for 100-240 V, 50/60 Hz (24 V, 1.5 A)CARRYING CASE DIMENSIONS AND WEIGHTApprox. 370(L) x 300 (H) x 115(D) 1800 gMachine troubleshoot at a glanceVibration root cause identificationStep by step according ISO10816-3Automatic speed detection
