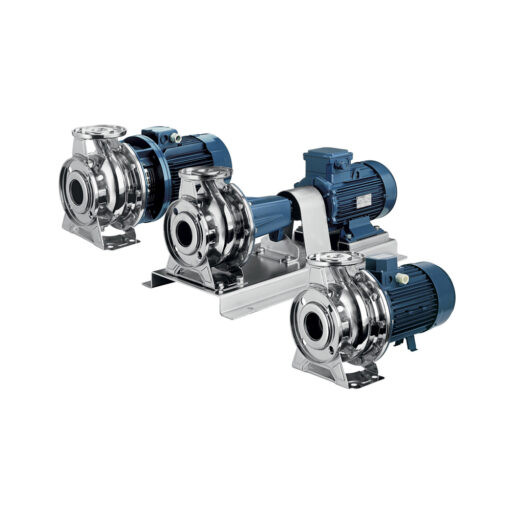

Ebara 3LS4 Centrifugal Pump

Ebara

Product Code: 3LS4
Brand: Ebara



GET OFFER: info@imtek.com.tr

Description for Ebara 3LS4 Centrifugal Pump

Technical dataFlow rateUp to 240 m³/hTotal headUp to 100 mMax. working pressure10 barMax. temperature of the liquid-5°C ÷ +90°C for standard models-5°C ÷ +110°C for H, HS, HW, HSW versions-20°C ÷ +120°C for E versionMEI> 0.4Poles2 and 4Insulation classFProtection degreeIP55VoltageSingle-phase 1~230V ±10%Three-phase 3~230/400V ±10%(up to and including 4kW)Three-phase 3~400/690V ±10%(from 5.5kW and above)MaterialsPump bodyStainless steel AISI 304 (EN 1.4301) for SERIE 3Stainless steel AISI 316L (EN 1.4404) for SERIE 3LStainless steel AISI 316 (EN 1.4401) precision-cast for SERIES 3L 65-250 80-160/200/250ImpellerStainless steel AISI 304 (EN 1.4301) for SERIE 3AISI 316L (EN 1.4404) for 3L SERIES 32, 40, 50AISI 316 (EN 1.4401) precision-cast for 3L SERIES 65, 80ShaftStainless steel AISI 304 (EN 1.4301) for 3 SERIESStainless steel AISI 316L (EN 1.4404) for 3L SERIESDuplex for 3L SERIES 65-250, 80-200/30, 80-200/37, 80-250Mechanical sealStandard = Ceramic/Carbon/NBRH = Graphite/Ceramic/FPMHS = Silicon Carbide/Silicon Carbide/FPMHW = Tungsten Carbide/Tungsten Carbide/FPMHSW = Silicon Carbide/Tungsten Carbide/FPME = Graphite/Ceramic/EPDMMotor supportAluminium - cast iron
