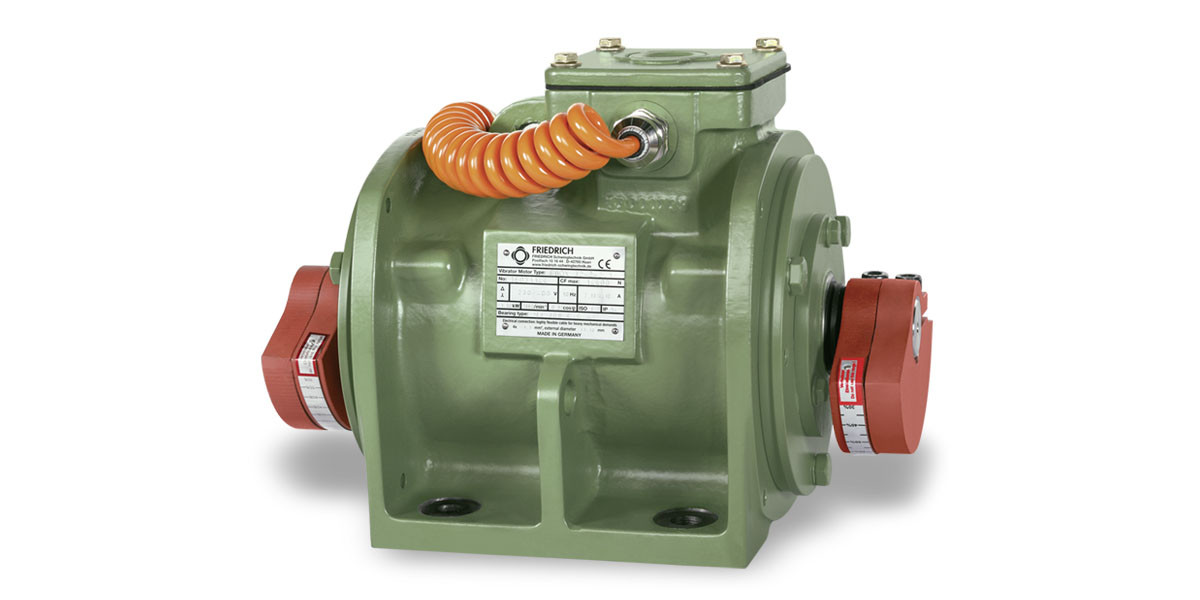

Friedrich FWO 23-2-2.2 Stoneware Vibrator Motor FW-Type

Friedrich

Product Code: FWO 23-2-2.2
Brand: Friedrich



GET OFFER: info@imtek.com.tr

Description for Friedrich FWO 23-2-2.2 Stoneware Vibrator Motor FW-Type

General specificationsStock:The built-in special cylindrical roller bearings with increased load capacity and clearance, are lubricated with a special grease for life.Power Supply:Voltages from 115 V to 690 V available in 50 HzDegree of protection:IP 54Thermal class:F (155 °C) according to DIN EN 60034-1Tropical insulation:StandardElectrical connection:Use high flexible cable for heavy mechanical stress.Example: H07RN-F or A07RN-F according to DIN VDE 0282.Permissible ambient temperature:-20 to +40 °COperating mode:Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.Assembly:Without limitation, motors can be mounted in any position.Color coating:Standard RAL 6011. Other colors available on request.Type code:The type code is read as follows:First block number = working moment in kgcm(working moment = 2 x static moment)This is followed by a hyphen and then the pole number.Where: 4 = 1460 rpm 6 = 980 rpm (at 50 Hz mains frequency).Behind the second dash, the size is specified.
