General information:
Product name: MG160MB
Product No: On request
EAN number: On request
Technical:
Shaft diameter: 42 mm
Length of shaft end: 110 mm
Approvals for motor: CE,EAC,UKCA,SEPRO,Morocco
Energy approvals for motor: CE,CC,Singapore,Aust./N.Z.
Model: H3
Cooling: IC 411
Measuring Equip: SVANTEK, SVAN 958
Cable gland entry: 2xM20 + 4xM40 knock out
Drain holes: Yes (closed)
Installation:
Range of ambient temperature: -30 .. 60 °C
Flange size for motor: FF300
Electrical data:
Motor standard: IEC
Motor type: 160MB
Rated power - P2: 11 kW
Mains frequency: 50 Hz
Rated voltage: 3 x 380-415D/660-690Y V
Rated current: 20,8-19,8/12,0-11,8 A
Maximum current consumption: 22,8-21,8/13,2-12,8 A
Starting current: 660-780 %
Cos phi - power factor: 0.88-0.84
Rated speed: 2940-2950 rpm
Rated full-load torque: 36.00-36.0 Nm
Locked-rotor torque: 240-280 %
Breakdown torque: 290-350 %
Moment of inertia: 0.039 kg m²
IE Efficiency class: IE3
Motor efficiency at full load: 91.2 %
Motor efficiency at 3/4 load: 91.8 %
Motor efficiency at 1/2 load: 91.3-91.2 %
Number of poles: 2
Enclosure class (IEC 34-5): 55 Dust/Jetting
Insulation class (IEC 85): F
Built-in motor protection: PTC
Tropic protec: no
Thermal protec: external
R1: 0.880 Ohm
R2: 0.880 Ohm
R3: 0.880 Ohm
Winding 1: PHASE 1
Winding 2: PHASE 2
Winding 3: PHASE 3
Mount. design. acc. IEC 34-7: IM V1/B5
Lubricant type: UNIREX N3
Lubricant quan.: 13 g
Temperature 1: 6500 h / 40 °C
Temperature 2: 1600 h / 60 °C
Bearing insulation type N-end: Steel bearing
Others:
Net weight: 88 kg

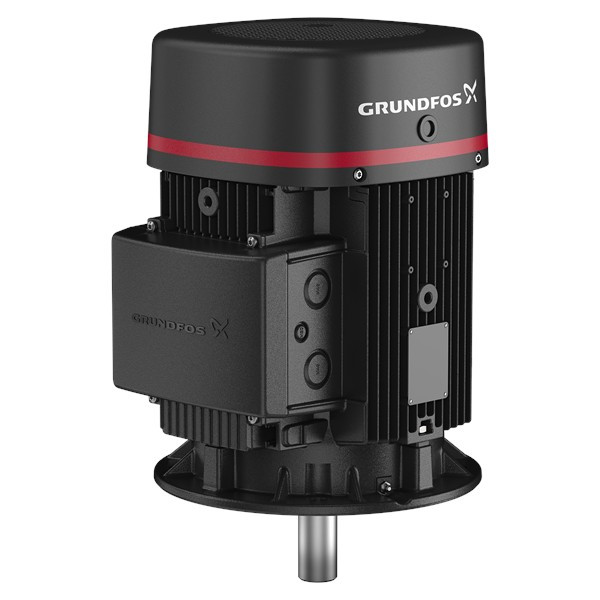

Get the best price and fastest delivery for Grundfos 85904507 87420030 MG160LB02 Spare Motor from Grundfos. Imtek Engineering offers worldwide industrial equipment supply with expert support.
