General information:

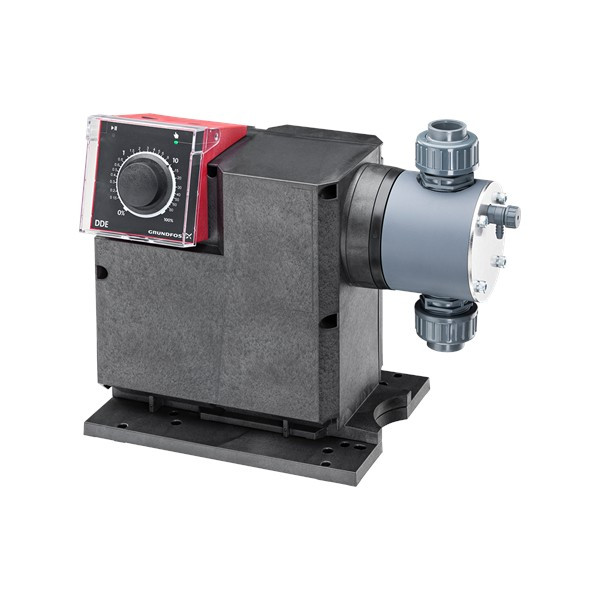

Product name: DDE 60-10
B-PVC/V/C-F-31U3U3FG
Product No: On request
EAN number: On request
Technical:
Max. Flow: 60 l/h
Min flow: 75 ml/h
Turn-down ratio: 1:800
Approvals: CE,CSA-US,NSF61,EAC,RCM
Valve type: Standard
Model: A
Maximum viscosity at 100 %: 100 mPas
Maximum viscosity in slow mode
50 %: N/A mPas
Maximum viscosity in slow mode
25 %: N/A mPas
Accuracy of repeatability: 5 %
Materials:
Dosing head: PVC (Polyvinyl chloride)
Valve ball: Ceramic
Al2O3
Gasket: FKM
Installation:
Range of ambient temperature: 0 .. 45 °C
Maximum operating pressure: 10 bar
Type of inlet connection: Connection pack
Type of outlet connection: Connection pack
Installation set (Yes/No): NO
Installation type: No installation set
Size of inlet connection: 19/27, 20/25
Size of outlet connection: 19/27, 20/25
Max. Suction lift during operation: 3 m
Max. Suction lift during priming: 1.5 m
Liquid:
Pumped liquid: Water
Liquid temperature range: 0 .. 40 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³
Electrical data:
Power input P1: 62 W
Mains frequency: 50 / 60 Hz
Rated voltage: 1 x 100-240 V
Enclosure class (IEC 34-5): IP65 / TYPE 4X
Length of cable: 1.5 m
Power plug: Schuko plug
Inrush current: 70A at 240V (35A/100V) for 2ms
Controls:
Control variant: B
Control panel: Front-Mounted
Ext. Stop input: No
Output relays: No
Others:
Net weight: 5.94 kg
Gross weight: 6.44 kg
