General information:

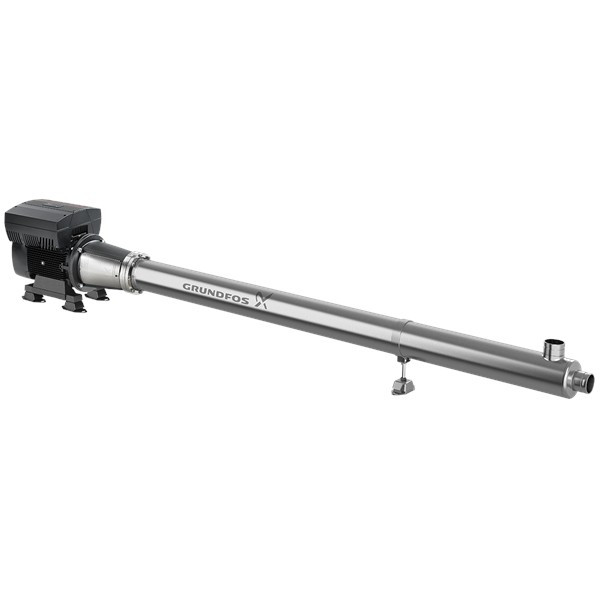

Product name: BMS 7-42 HS-C-C-P-B
Product No: On request
EAN number: On request
Technical:
Rated flow: 46.2 US GPM
Rated head: 1444 ft
Stages: 42
Approvals: CE, TR
Curve tolerance: ISO9906:2012 3B
Model: A
Materials:
Pump: Stainless steel
EN 1.4539
AISI 904L
Impeller: Stainless steel
EN 1.4539
AISI 904L
Motor: C
Sleeve: Super Duplex/Duplex steel
AISI 318 LN
EN 1.4462/1.4410
Shaft seal: WC/WC
Installation:
Maximum ambient temperature: 104 °F
Minimum inlet pressure: 14.5 psi
Maximum permissible inlet pressure: 290.08 psi
Maximum outlet pressure: 1199.46 psi
Pipe connection: 2"/D60,3
Flange size for motor: 07
Liquid:
Pumped liquid: Water
Liquid temperature range: 32 .. 104 °F
Selected liquid temperature: 68 °F
Density: 62.29 lb/ft³
Electrical data:
Motor type: C
Frame size: 160LD
IE efficiency class: NEMA Premium / IE3 60Hz
Rated power - P2: 25 HP
Mains frequency: 60 Hz
Rated voltage: 3 x 400 V
Rated current: 37-31 A
Rated speed: 1700-5000 rpm
Motor efficiency at full load: 92.4 %
Number of poles: 2
Enclosure class (IEC 34-5): IP55
Controls:
Frequency converter: Built-in
Others:
Net weight: 569 lb
Gross weight: 867 lb
Shipping volume: 38.8 ft³
