General information:

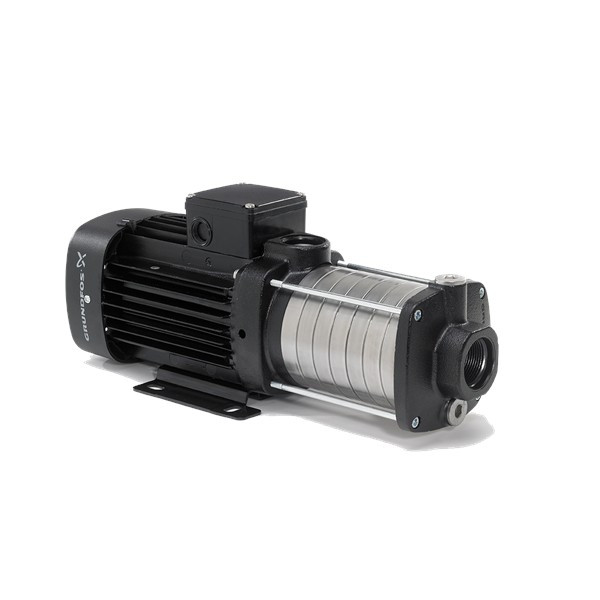

Product name: CM 3-2 A-R-G-E-AQQE
F-A-A-N
Product No: On request
EAN number: On request
Technical:
Pump speed on which pump data are
based:
2900 rpm
Rated flow: 3.1 m³/h
Rated head: 13.26 m
Impellers: 2
Primary shaft seal: AQQE
Code for shaft seal: AQQE
Approvals: CE,EAC,UKCA
Approvals for drinking water: WRAS,ACS,NSF61,UBA
Curve tolerance: ISO9906:2012 3B
Pump version: A
Model: A
Materials:
Type key, code for materials: G
Type key, code for rubber components.
E = EPDM, V=FKM:
E
Pump housing: Stainless steel
EN 1.4401
AISI 316
Impeller: Stainless steel
EN 1.4401
AISI 316
Material code: G
Code for rubber: E
Installation:
Range of ambient temperature: -20 .. 55 °C
Maximum operating pressure: 16 bar
Max pressure at stated temp: 16 bar / 90 °C
10 bar / 120 °C
Type key, code for pipework
connection:
R
Type of connection: Rp
Size of inlet connection: 1 inch
Size of outlet connection: 1 inch
Terminal box position: 12
Outlet position: 12
Connect code: R
Liquid:
Pumped liquid: Water
Liquid temperature range: -20 .. 120 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³
Electrical data:
Motor standard: IEC
Frame size: 71A
Rated power - P2: 0.46 kW
Mains frequency: 50 Hz
Suitable for 50/60 Hz (Yes/No): N
Rated voltage: 3 x 220-240D/380-415Y V
Service factor: 1.00
Rated current: 2,0-2,2/1,0-1,2 A
Starting current: 490-530 %
