General information:

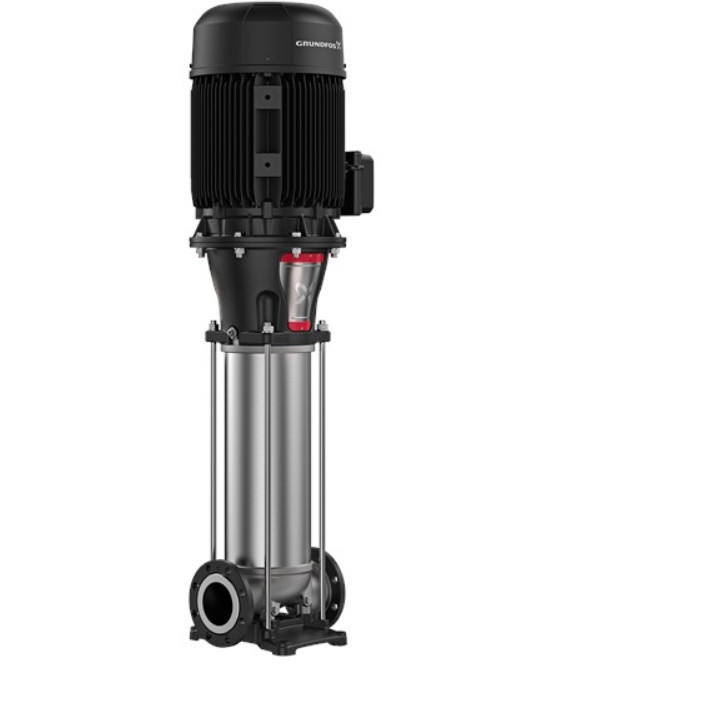

Product name: CRN 95-2-2
A-F-A-E-HQQE
Product No: On request
EAN number: On request
Technical:
Pump speed on which pump data are
based:
2950 rpm
Rated flow: 95 m³/h
Rated head: 32.6 m
Maximum head: 49.3 m
Stages: 2
Impellers: 2
Number of reduced-diameter impellers: 2
Low NPSH: N
Pump orientation: Vertical
Shaft seal arrangement: Single
Primary shaft seal: HQQE
Code for shaft seal: HQQE
Approvals: CE,EAC,UKCA,SEPRO
Approvals for drinking water: ACS
Curve tolerance: ISO9906:2012 3B
Pump version: A
Model: A
Cooling: IC 411
Materials:
Type key, code for materials: A
Type key, code for rubber components. E
= EPDM, V=FKM:
E
Base: Stainless steel
EN 1.4408
ASTM A351 CF8M
Impeller: Stainless steel
EN 1.4401
AISI 316
Material code: A
Code for rubber: E
Bearing: WC/WC
Support bearing: Graflon
Material certified according to: European standards
