General information:

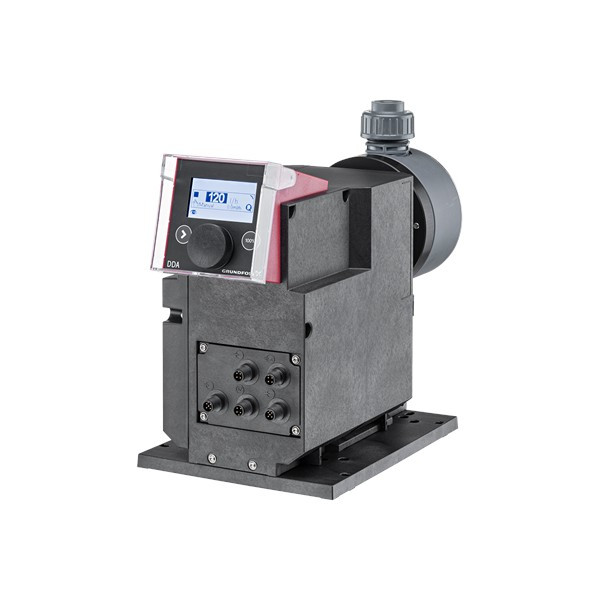

Product name: DDA 120-7
AR-PVC/V/C-F-31U3U3FG
Product No: On request
EAN number: On request
Technical:
Type key: DDA 120-7
AR-PVC/V/C-F-31U3U3F
Max. Flow: 120 l/h
Max. flow in slow mode 50%: 60 l/h
Max. flow in slow mode 25%: 30 l/h
Min flow: 150 ml/h
Turn-down ratio: 1:800
Approvals: CE,CSA-US,NSF61,EAC,RCM
Valve type: Standard
Maximum viscosity at 100 %: 100 mPas
Maximum viscosity in slow mode
50 %: 1500 mPas
Maximum viscosity in slow mode
25 %: 3000 mPas
Accuracy of repeatability: 1.5 %
Materials:
Dosing head: PVC (Polyvinyl chloride)
Valve ball: Ceramic
Gasket: FKM
Installation:
Range of ambient temperature: 0 .. 45 °C
Maximum operating pressure: 7 bar
Installation set (Yes/No): NO
Installation type: No installation set
Pump inlet: Conn.pack U3 (hose ID.19mm &..
Pump outlet: Conn.pack U3 (hose ID.19mm &..
Max. Suction lift during operation: 3 m
Max. Suction lift during priming: 1.5 m
Liquid:
Pumped liquid: Water
Liquid temperature range: 0 .. 40 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³
Electrical data:
Maximum power input - P1: 62 W
Mains frequency: 50 / 60 Hz
Rated voltage: 1 x 100-240 V
Enclosure class (IEC 34-5): IP65 / TYPE 4X
Length of cable: 1.5 m
Type of cable plug: EU
Inrush current: 70A at 240V (35A/100V) for 2ms
Controls:
Control variant: AR
Control panel: Front-Mounted
Level control: YES
Analog input: 0/4-20 MA
Pulse control: YES
Ext. Stop input: Yes
