General information:

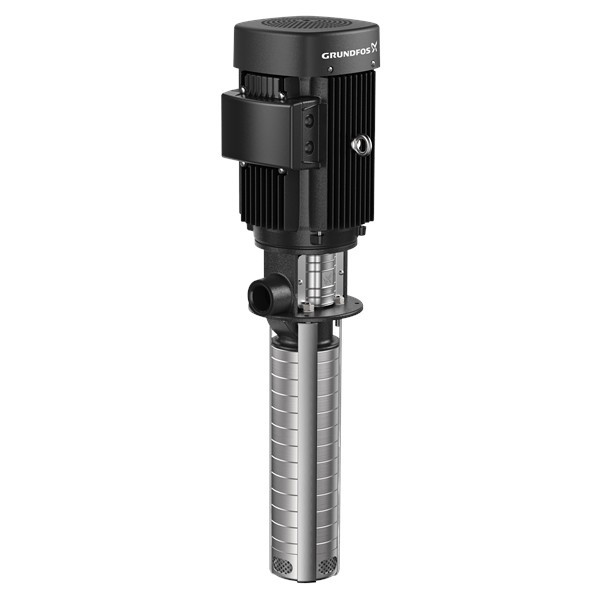

Product name: MTR 2-22/22 A-W-A-HUUV
Product No: On request
EAN number: On request
Technical:
Pump speed on which pump data
are based:
2899 rpm
Rated flow: 33.3 l/min
Rated head: 143.9 m
Chambers: 22
Impellers: 22
Number of reduced-diameter
impellers:
0
Drainage back to tank (Yes/No): N
Pump orientation: Vertical
Primary shaft seal: HUUV
Code for shaft seal: HUUV
Approvals: CE,EAC,UKCA,RCM,Morocco
Approvals for motor: CE,EAC,UKCA,SEPRO,RCM,
Morocco
Energy approvals for motor: CE,CC,Singapore,Aust./N.Z.
Curve tolerance: ISO9906:2012 3B
Pump version: A
Model: A
Materials:
Type key, code for materials: A
Pump head: Cast iron
EN 1561 EN-GJL-200
ASTM A48-25B
Impeller: Stainless steel
EN 1.4301
AISI 304
Material code: A
Installation:
Maximum ambient temperature: 60 °C
Maximum operating pressure: 25 bar
Max pressure at stated temp: 25 bar / 90 °C
Type key, code for pipework
connection:
W
Type of connection: G internal thread
Size of outlet connection: 1 1/4 inch
Immersion depth: 520 mm
Flange size for motor: FT115
Terminal box position: 6
Connect code: W
Liquid:
Pumped liquid: Emulsion
Liquid temperature range: -10 .. 90 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³
Electrical data:
Motor standard: IEC
Motor type: 90LE
Rated power - P2: 2.2 kW
Mains frequency: 50 Hz
Suitable for 50/60 Hz (Yes/No): N
Rated voltage: 3 x 220-240D/380-415Y V
