General information:

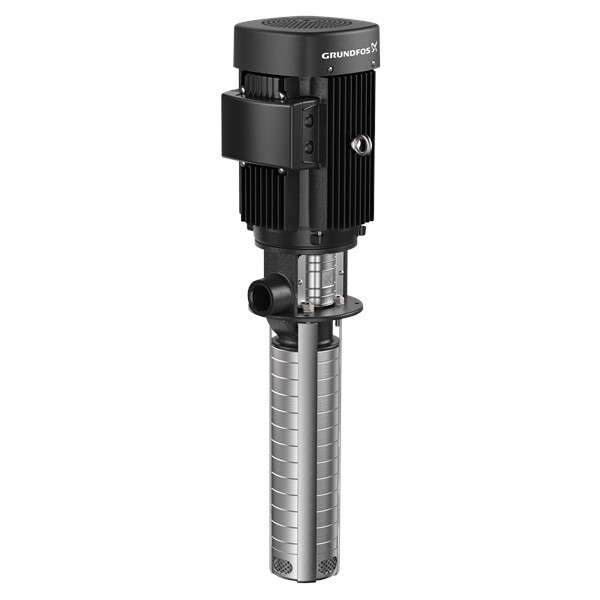

Product name: MTR 5-21/21
A-W-I-HUUV
Product No: On request
EAN number: On request
Technical:
Pump speed on which pump data are
based: 2902 rpm
Rated flow: 96.7 l/min
Rated head: 107.3 m
Chambers: 21
Impellers: 21
Number of reduced-diameter impellers: 0
Drainage back to tank (Yes/No): N
Pump orientation: Vertical
Primary shaft seal: HUUV
Code for shaft seal: HUUV
Approvals: EAC
Curve tolerance: ISO9906:2012 3B
Pump version: A
Model: A
Materials:
Type key, code for materials: I
Pump head: Stainless steel
EN 1.4408
ASTM A351 CF8M
Impeller: Stainless steel
EN 1.4301
AISI 304
Material code: I
Installation:
Maximum ambient temperature: 60 °C
Maximum operating pressure: 25 bar
Max pressure at stated temp: 25 bar / 90 °C
Type key, code for pipework connection: W
Type of connection: G internal thread
Size of outlet connection: 1 1/4 inch
Immersion depth: 682 mm
Flange size for motor: FT130
Terminal box position: 6
Connect code: W
Liquid:
Pumped liquid: Emulsion
Liquid temperature range:-10 .. 90 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³
Electrical data:
Motor standard: IEC
Motor type: 100LC
Rated power - P2: 3 kW
Mains frequency: 50 Hz
Suitable for 50/60 Hz (Yes/No): N
Rated voltage: 3 x 380-415D V
Rated current: 6.3 A
Starting current: 840-920 %
Cos phi - power factor: 0.87-0.82
Rated speed: 2900-2920 rpm
