General information:

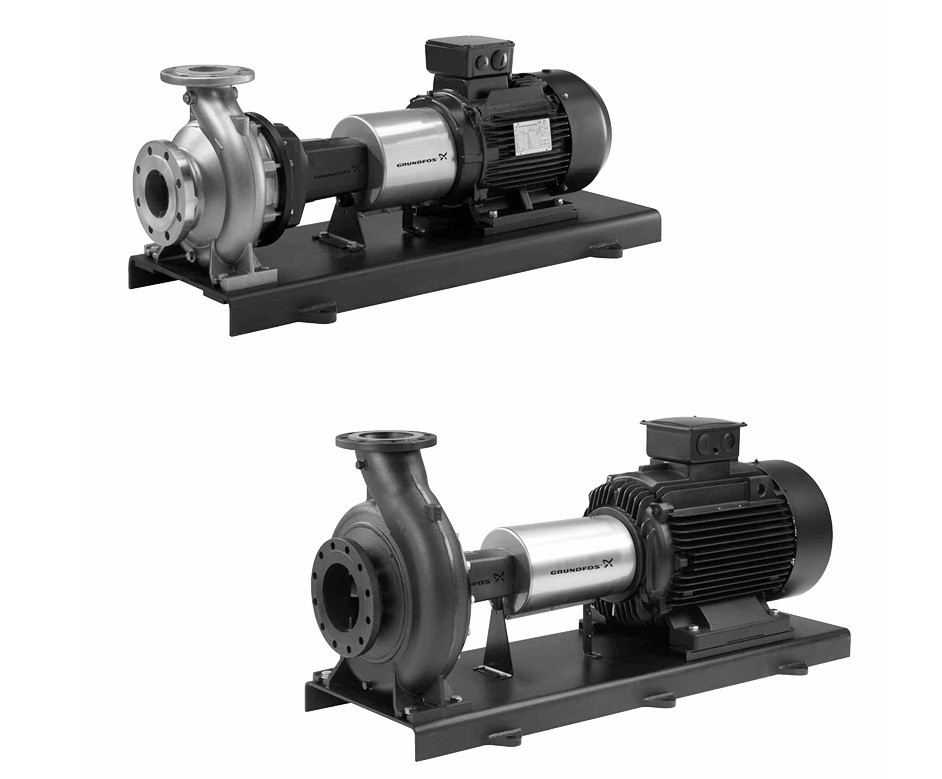

Product name: NK 65-160/157
AA1F2AESBAQENW1
Product No: On request
EAN number: On request
Technical:
Pump speed on which pump data
are based:
2945 rpm
Rated flow: 103.6 m³/h
Pump with motor (Yes/No): Y
Rated head: 27.23 m
Actual impeller diameter: 157 mm
Nominal impeller diameter: 160
Primary shaft seal: BAQE
Shaft diameter: 24 mm
Code for shaft seal: BAQE
Mechanical seal type: Single
Curve tolerance: ISO9906:2012 3B
Pump version: A1
Bearing design: Standard
Materials:
Type key, code for materials: A
Type key, code for rubber
components. E = EPDM, V=FKM:
E
Pump housing: Cast iron
EN-GJL-250
ASTM class 35
Wear ring: Brass
CuZn34Mn3AI2Fe1-C
Impeller: Cast iron
EN-GJL-200
ASTM class 30
Pump house, internal coating: CED
Material code: A
Code for rubber: E
Shaft: Stainless steel
EN 1.4301
AISI 304
Installation:
Maximum ambient temperature: 60 °C
Maximum operating pressure: 16 bar
Type key, code for pipework
connection:
F
Pipe connection standard: EN 1092-2
Type of inlet connection: DIN
Type of outlet connection: DIN
Size of inlet connection: DN 80
Size of outlet connection: DN 65
Pressure rating for connection: PN 16
Coupling type: Flexible w/o spacer
Base frame design: EN/ISO
Code for base frame: 6B ST
Grouting (Yes/No): N
Connect code: F
Liquid:
Pumped liquid: Water
Liquid temperature range: 0 .. 120 °C
Selected liquid temperature: 20 °C
