General information:

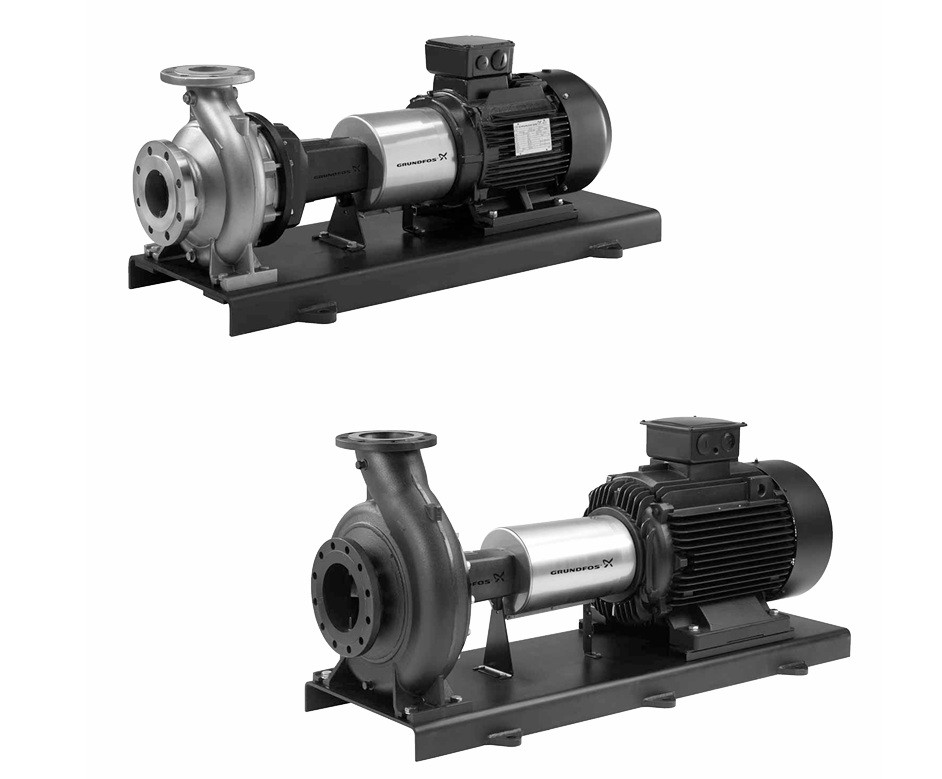

Product name: NK 65-315/308
AA2F2IESBQQEWW1
Product No: On request
EAN number: On request
Technical:
Pump speed on which pump data
are based:
2970 rpm
Rated flow: 181.3 m³/h
Pump with motor (Yes/No): Y
Rated head: 119.6 m
Actual impeller diameter: 308 mm
Nominal impeller diameter: 315
Primary shaft seal: BQQE
Shaft diameter: 32 mm
Code for shaft seal: BQQE
Mechanical seal type: Single
Curve tolerance: ISO9906:2012 3B
Pump version: A2
Bearing design: Standard
Materials:
Type key, code for materials: I
Type key, code for rubber
components. E = EPDM, V=FKM:
E
Pump housing: Stainless steel
EN 1.4408
ASTM CF8M
Wear ring: Stainless steel
Impeller: Stainless steel
EN 1.4408
ASTM CF8M
Pump house, internal coating: No coating
Material code: I
Code for rubber: E
Shaft: Stainless steel
EN 1.4462
SAF 2205
Installation:
Maximum ambient temperature: 60 °C
Maximum operating pressure: 16 bar
Type key, code for pipework
connection:
F
Pipe connection standard: EN 1092-1
Type of inlet connection: DIN
Type of outlet connection: DIN
Size of inlet connection: DN 80
Size of outlet connection: DN 65
Pressure rating for connection: PN 16
Coupling type: Flexible w/spacer
Base frame design: C-channel
Code for base frame: 69s
Grouting (Yes/No): Y
Connect code: F
Liquid:
Pumped liquid: Water
Liquid temperature range: -25 .. 120 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³
