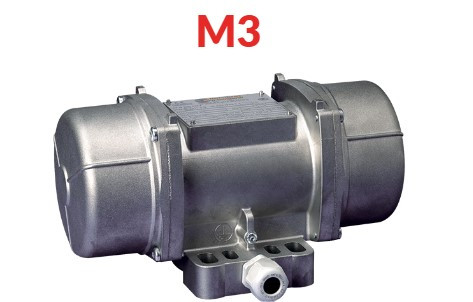

Italvibras M3/105-S02 600465 Multi-hole Fixing Electric Vibrator

Italvibras

Product Code: M3/105-S02
Artikelnummer: 600465
Brand: Italvibras



GET OFFER: info@imtek.com.tr

Description for Italvibras M3/105-S02 600465 Multi-hole Fixing Electric Vibrator

Power supply Three-phase voltage from 24V to 690V, 50Hz o 60Hz or single-phase 100-130V, 60Hz and 200-240V, 50Hz; suitable for use with an inverter from 20Hz to the base frequency with constant torque load profile. Polarity 2 and 4 poles. Conformity with Standards and Regulations Low Voltage Directive 2006/95/EC; ATEX Directive 2014/34/UE; EN/IEC 60034-1, EN/IEC 60079-0, EN/IEC 60079-31, UL 1004-1, CSA C22.2 No.100, NEMA MG-1. Functioning Continual service (S1) at maximum declared centrifugal force and electric power. Intermittent services are also possible depending on the type of vibrator and the operating conditions. For detailed information contact our technical assistance office. Centrifugal force Range up to 311 kgf (3.05 kN). Centrifugal force can be changed by adjusting the eccenctric weights Mechanical protection IP 66 according to IEC/EN 60529. Protection against mechanical impacts IK 08 according to IEC/EN 62262. Insulation class Class F (155°C). Tropicalization Standard with vacuum encapsulation. Ambient temperature From -20°C to +40°C. Vibrator thermal protection On request with PTC thermistor rated heat detectors 130°C.
