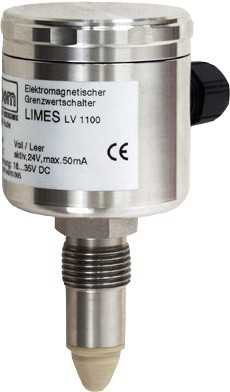

Labom LV1100-M01 Level Sensor

Labom

Product Code: LV1100-M01
Brand: Labom



GET OFFER: info@imtek.com.tr

Description for Labom LV1100-M01 Level Sensor

Function LV1100 - type seriesConstruction / housingDesign: field housing with screw capHousing material: stainless steel mat. 1.4305 (303)Protection class: IP 69K according to EN 60529Electrical connection:   Cable gland M16 made of PA screw terminals for wires up to 1.5 mm 2   Round connector M12Operating pressure: maximum 10 barWeight: approx. 0.6 kgProcess connection: G1 / 2 B, rotatable, tightening torque 5 ... 10 Nm, elastomer-free sealing systemMaterial wetted partsMaterial: PEEK, FDA-compliantMeasuring systemSensor: electromagnetic waveoutputSignal: 50 mA, short-circuit proof and switchableLED display: red, when the probe is coveredResponse time:
