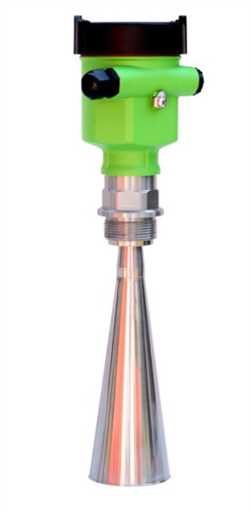

Microlevel MICROPULS 59 / MP59PMGDX2BAMAX Radar Level Sensor

microlevel-micropuls-59-mp59pmgdx2bamax-radar-level-sensor-26009.pdf

PDF • 2037.8 KB

Download

Details:

Advantages

Easy montageNon-contact measurementHigh precisionMaintenance-free structureNot affected by steam, pressure, temperature and gas formation

Scope of application

MICROPULS 59 is especially ideal for the measurement of bulk solids under harsh conditions. The electronic amplifier is configured for harsh conditions. Thus, the MICROPULS 59 is the most effective radar sensor according to the measurement distance, especially in dusty environments. Thanks to this feature, it is the most ideal sensor for measuring all particulate solids such as cement, aggregate, plastic, coal, lime, mineral, sawdust, chips, food powders, feed, grain, granules and similar products up to 15m.

Technicial Specifications

Measuring range / frequency	Up to 30 meters / 26 Ghz K band
Tolerance	± 10 mm
Process connection	Threaded, G1½ A or 1½ NPT, Flanged, from DN 50
Process pressure	-1… 40 bar
Process temperature	-40 ... 150 ° C, (Optional -60 ... +200 ° C)
Outdoor, storage and transport temperature	-40… +80 ° C
Operating voltage	14.… 36 V DC
