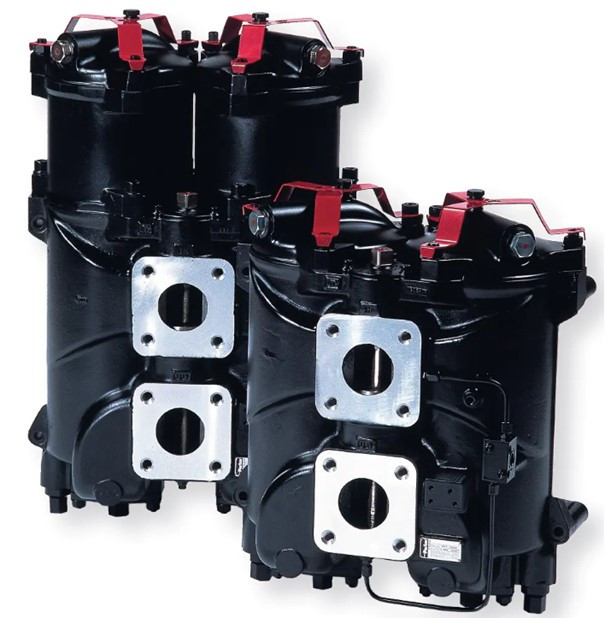

Low Pressure In-Line Duplex Filter - DF2035 SeriesThe DF2035 is a series of Light weight,
low pressure, high flow capacity duplex filters for gear and diesel engine lube
system applications.
Suitable for flows up to 800 l/min and pressures
up to 8 bar.Technical Specifications Seal Material:FluorelastomerBypass Valve Pressure Rating:2,0 barPort Type:DN65/PN16 ref. Square flange & Blind counter flangeOptions:With bypass Mounting Type:InlinePressure Rating:34 bar, 0-500 psi barFlow Rate:500-1000L/minHousing Material:AluminiumOperating Temperature:-20/+120C
Items marked with an asterisk * in the
drop-down menus are standard choices.
The DF2035 series is a Light weight, high flow
capacity duplex filter for gear and diesel engine lube system applications.
Its aluminium housing offers a light weight solution
for high capacity filtration.
The DF2035 filter has Several filtration media
options and high dirt holding capacity: It can hold up to three filter elements
per reservoir.
Two housing lengths available.
Maximum flow rate up to 1800 l/min. Maximum pressue
10 bar. 160 mm square flange connections.
Applications:
• Industrial gear systems
• Diesel engine lubricating systems
Duplex Filter
