The inverters of the SINUS H series allow adjusting speed value of three-phase asynchronous and PM-synchronous motors by way of several control modes.Control modes may be user-defined and allow obtaining the best performance in terms of finetuning and energy saving for any industrial application.Sinus H – Models Range▪ Power supply voltage range:o 2S: 200 ~ 240 V single-phase ( -15%/+10% )o 2T: 200 ~ 240 V three-phase ( -15%/+10% )o 4T: 380 ~ 480 V three-phase ( -15%/+10% )▪ Applicable motor power range:o Sinus H with single-phase power supply: 0.4 ~ 3.7 kWo Sinus H with three-phase power supply: 0.4 ~ 37 kW▪ Overload capacity (Dual rating):o Up to 150% for 60 s (Heavy Duty)o Up to 120% for 60 s (Normal Duty)HIGHLIGHTS▪ Control methods: V/f, Sensorless Vector Control for asynchronous motors and SensorlessVector Control for PM-synchronous motors.▪ Built-in dynamic braking unit up to Sinus H 0030 model.▪ Integrated EMC filter compliant to EN61800-3, 2nd Environment, C3 Category for industrialusers. Available for Sinus H 0001 ~ 0034 4T.EMC filter Category C2 is available also for Sinus H 0001 ~ 0005 2S.▪ Integrated DC Reactor for Sinus H 0034 model.▪ Selectable rotary/standstill auto-tuning.▪ Starting torque of 200% / 0.5 Hz▪ Lifecycle estimation:o Main capacitor: estimated by monitoring changes in capacitance value.o Fans: warning signal is displayed when the fan is operated over a preset duration.▪ Safety Built-in STO certified Function. By using this function, short-time operations andmaintenance work on non-electrical parts of the machinery can be performed withoutswitching off the power supply to the drive.▪ P2P function embedded: I/Os can be shared among master and slave drives.▪ User sequence function: simple PLC sequences can be operated with various function blockcombinations.▪ Easy cooling fan replacement: replaceable fan without complete disassembly.▪ Side by Side Installation: when installing multiple inverters, the size of the panel can bereduced due to minimized gap between products.▪ IP20 Protection degree as standard. IP66 and NEMA4X models are available up to 22 kW.▪ Air exhaust structure for internal cooling system enhances inverter protection andimproves the life of Sinus H in dusty working environment.

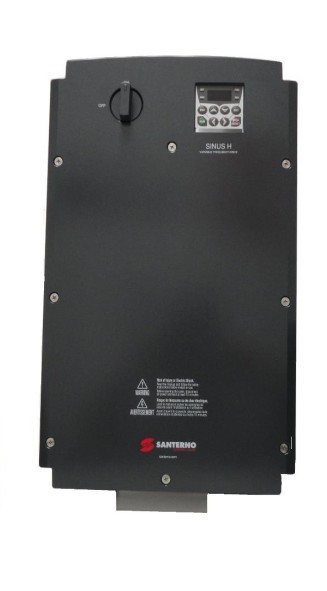

Get the best price and fastest delivery for Santerno SINUS H 0002 4T BA2K2 Drive from Santerno. Imtek Engineering offers worldwide industrial equipment supply with expert support.
