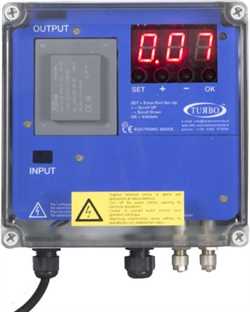

Turbo E2T 20÷99 OUTPUTS Economiser

Turbo

Product Code: E2T 20÷99 OUTPUTS
Brand: Turbo



GET OFFER: info@imtek.com.tr

Description for Turbo E2T 20÷99 OUTPUTS Economiser

DESCRIPTIONEconomiser for controlling the pneumatic cleaning of industrial dust collector systems. It has 2 output relay contacts and 2 digital input contacts. Differential pressure digital control through internal transducer, which allows the accurate analysis of the filter clogging status. 3-digit luminous LED display, which allows to read the filter clogging status, the active solenoid valves and any alarms, at all times.FEATURESPower Supply Voltage: Power Supply Voltage Upon Request: Ouput Voltage for Solenoid Valves: Inputs: Solenoid Valves Output Channels: Active Output 4-20ma Electric Consumption: Alarm Relays: Maximum Load: Differential pressure switch Screen: 5 x 20 mm glass fuse: Operating Temperature: Storage Temperature: Enviromental Humidity: Valves opening impulse time: Interval pause time between valve openings: Casing: Protection Rating From Water and Dust: Shock Resistance:115 Vac 50-60 Hz ± 10 % / 230 Vac 50-60 Hz ± 10 % 24 Vac ± 10 % / 24 Vdc ± 10 % 115 Vac 50-60 Hz / 230 Vac 50-60 Hz / 24 Vac / 24 Vdc Remote Enabling Consent Switch / Post-Cleaning Cycles 4 ÷ 99 Proportional to the dP reading for remote consultation of pressure 28 Watt at maximum load 2 normally closed 3A @ 250Vac / 2A @ 24Vdc, 24 Vac 0 – 4 kPa 3 x 0.8 inch digit 7-segment LED display 115 o 230 Vac 1 x 1 A / 24 Vac o 24 Vdc 1 x 3 A From -10 °C to 55 °C From -20 °C to 60 °C 0 ÷ 95% Relative non condensing 50 m.sec. ÷ 5 sec. 1 sec. ÷ 999 sec. Base in ABS / Lid in Polycarbonate IP65 DIN EN 60529 IK07 2 Joule (EN62262)
